APPLY7 · Job files and run tools in 0.0.1

Running 2026-10-28 · branch autopilot/apply7-logs-features · Thomas: each job's own files from its work directory, and five more tools in 0.0.1 (resume, failure summary, results, copy, resources) · four choices assumed (inbox #70) · four new security requirements (dev-env §15.3 req. 13 to 16) · P1 gains milestone M8, Tasks 28 to 32 · review round on bbeff35: doc approve 11/14, 11 UX and 10 security findings, all applied

The memory and time values and the 143 of 175 jobs are the LiteRunFailed board's fixture. Before: autopilot/integration at 5e2493e, where 0.0.1 showed the head's output, head errors and the engine log only, and each task's work directory as a path (P1 Assumption 20), with relaunch and resume deferred.

This step is outside pipeline.yaml. Thomas, 2026-10-28: "Je veux également que ça soit possible de voir les logs globaux et les lots et stout err log sh et autres de chaque job si possible via workdir / Autres features basic mais utile en MVP ?", then, on the five tools proposed: "les 5 dans 0.0.1" (decision log).

What changed

Each item, then where it now lives.

• A · global logs and each job's files.
  • Architecture §13.7 keeps its table and gains a dated revision: the run's logs (Spectio sets NXF_LOG_FILE to .spectio/nextflow.log, because .nextflow.log rolls at every start), the files of a Nextflow work directory and what each holds, the Snakemake rule logs and SLURM job logs, all with sources.
  • api: GET /tasks/{id}/attempts/{n}/files[/{name}], with the states present, not_yet, absent, deleted_after_success and cleaned, a 64 KiB tail, 1 MiB at most, 415 for binary files and 422 for a name outside the allow-list; work_dir on the run.
  • ui-spec §4.4 note: a Files button per task row opens a drawer on the desktop and a sheet on the phone, with the work directory to copy and one tab per file; a failed attempt opens on .command.log (.command.err for array tasks). The Logs tab says the engine log is the run's own.
  • P1: Assumption 20 is reversed; Task 28.
• B1 · Resume a failed or cancelled run. A child run with its own .spectio/, its head in the parent's launch directory, with -resume or --rerun-incomplete; the parent stays Failed or Cancelled. Owned by api §5.1 (note 2026-10-28: body {mode:"resume"} only, parent_run_id, resumed_as); P1 Task 30; dev-env §15.1 Relaunch row rewritten.
• B2 · Failure summary with the SLURM reason. Per failed job: exit code, SLURM state and reason, memory and time asked and used, and the last lines of .command.log. Nextflow gives the job ID; Spectio calls sacct once per failed attempt. For Snakemake, the plugin's own failure message is parsed. Owned by architecture §13.7 (Failure reason) and the api failure fields; P1 Task 29.
• B3 · Results and reports, read only. GET /runs/{id}/results?path= and /results/raw/{path} under the run's results directory; HTML opens in a sandboxed tab. Runs Spectio launched only. P1 Task 31.
• B4 · Copy the command and parameters; Copy to a new launch. A Copy menu, and :launch-template, which prefills the launch form from a run. P1 Task 30.
• B5 · Resources per task. CPUs, CPU %, memory, peak memory and time limit as numbers in the tasks table, from the Nextflow trace (nf-spectio turns metrics on) and from sacct in batches for Snakemake. Architecture §13.7 (Resources per task); P1 Task 29.
• Everywhere:
  • dev-env §15.1: five new rows and the Scheduler monitoring row; §15.3: requirements 13 to 16, listed below.
  • mvp-0.0.1.md §2: two rows; the deferred relaunch line reworded; the screenshot captions updated.
  • P1: Assumptions 1, 3 and 20 dated notes; milestone M8 with Tasks 28 to 32, each with named tests; Out of scope and Done when.
  • Inbox: a note on #61, and #70.
  • Decision log: a new entry.
• Boards (design/ui-canvas/):
  • LiteRunTasks, MLiteRunTasks: resource columns, a "near limit" word, a Files button per row;
  • LiteTaskFiles, MLiteTaskFilesSheet, new: the drawer and the sheet, aria-modal, the page behind inert, focus back on the row's Files button;
  • LiteRunFailed: Resume, Copy to a new launch and Copy; one card per failed job with the SLURM state and reason, exit code, memory and time asked and used, last lines, Open job files; a Results and reports section;
  • LiteRunDetail, MLiteRunDetail: a Copy menu and a Results and reports section;
  • LiteLaunch: the "Prefilled from" banner with "Clear and start empty";
  • LiteRunLogs, MLiteRunLogs: the engine log is the run's own; each job's files open from Tasks;
  • canvas.json and design/README.md register the two new boards.

New security requirements (dev-env §15.3)

1. Confined reads. Names, never paths; a component-by-component openat walk with O_NOFOLLOW, regular files of the user only; Snakemake names equal to the recorded path; a byte-capped tail in a file pool of its own; the files never served listed here only; .command.run with its values hidden by a shell lexer that fails closed, and unset NXF_DEBUG; plain text with nosniff, no-store and no-referrer.
2. Reports in a sandbox. HTML from the results directory opens only in Spectio's report viewer, in <iframe sandbox="allow-scripts allow-downloads">, served with a sandbox Content-Security-Policy without allow-same-origin and with frame-ancestors 'self', so a report's script cannot call the API with the session cookie; listings, report search and streams are capped.
3. Scheduler queries. One limiter for the server (one sacct call in flight, 60 s apart, 100 IDs a call), none on rebuild or replay, a cache in .spectio/sacct.json; IDs checked, an argument list with an explicit environment and a 10 s timeout; [slurm] accounting = false turns it off.
4. Resume and copy. Resume is a state-changing request, refused on runs started from a terminal, while the parent's head is alive or cannot be checked, and while another child of the same directory runs (a lock file and BEGIN IMMEDIATE); the directory checks, its device and inode, run again before the child starts; values that load code are marked in Copy to a new launch.

Review round on bbeff35

The coordinator relayed three reviews of bbeff35 in one message: doc-reviewer approved with 11/14 (four required and six optional findings), ux-reviewer raised UX-325 to UX-335 and security-reviewer SEC-150 to SEC-159. Every finding was accepted and applied in a second commit on the same branch; each one and what was done with it is in the review page. In short:

• Specs. The ui-spec note now owns one run header for every tab with Copy in every state, the Resume dialog and its four disabled reasons, the job file states and size line, the failure cap of 10, the results browser and the report viewer, and one banner format for Copy to a new launch. api gains failures_total, actions.resume, resumed_as and code_loading. Requirements 13 to 16 are rewritten with named tests (test_req13_* to test_req16_*), and checking-scenarios §11.1 gains the openat walk.
• Six new boards: LiteTaskFilesStates (nine states of a job's files), LiteRunActions (Resume dialog, disabled reasons, Resume links, the open Copy menu), MLiteResumeSheet, MLiteRunFailed, LiteResults (results browser) and LiteReportViewer (sandboxed report viewer).
• Changed boards: LiteRunFailed, LiteTaskFiles, MLiteTaskFilesSheet, MLiteRunTasks, MLiteRunLogs, LiteRunDetail, MLiteRunDetail, LiteLaunch, and the Copy menu added to LiteRunTasks, LiteRunLogs, LiteRunDetailSnakemake, LiteRunObserved and MLiteRunObserved.
• Figure: a "before (5e2493e)" strip above row A; row B2 says "Nextflow: sacct per failed attempt; Snakemake: batch" with the limiter.

Why

On a cluster, the first question after a failure is "what did the job print, and did it run out of memory or time?". In 0.0.1 the answer meant opening a terminal on the login node and finding the work directory. The files already exist next to each job, and Nextflow and Snakemake already tell Spectio where; reading them on demand costs nothing until someone opens one. Resume and Copy to a new launch close the loop from a failure to a fixed run without retyping the parameters.

Evidence

• Sources: the facts about Nextflow 26.10.4 (691b821) and 25.10.9 (64d39b0), Snakemake 9.27.1 and snakemake-executor-plugin-slurm 2.8.0 (91f51af) carry file:line references in architecture §13.7; a fact-checker pass on them was applied before the boards were drawn.
• Boards: every changed board was rendered with node tools/canvas/render.js (desktop 1440 × 1180, phone 390 × 844) and looked at. In the review round, the six new boards and the thirteen changed ones were rendered again and looked at, below the fold too, by scrolling main before the screenshot.

• Docs gate, python3 tools/docs/check.py on this branch:

  mermaid: 5 blocks checked
  diagrams: 30 scripts re-run, 60 SVGs compared
  media: 146 outputs in the manifest
  progress: 43 pages checked
  docs gate: 0 failure(s)


• Strict build: uvx --with mkdocs-material mkdocs build --strict exits 0. The new anchors exist in the built pages: 2026-10-28-001-shows-each-jobs-files-and-gains-resume-failure-summary-results-copy-and-resources and 70-assumed-what-the-job-file-viewer-shows-and-spectio-calling-sacct.

• Frontmatter: python3 tools/claude/check_frontmatter.py: 14 agents, 22 skills, 0 problems.
• Mermaid: no diagram added or changed in this step.
• Before: git show 5e2493e:docs/plans/P1-walking-skeleton.md (Assumption 20: the work directory as a path only). After: git diff 5e2493e -- docs/specs docs/plans docs/decisions docs/reviews/inbox.md design.

Figures and media

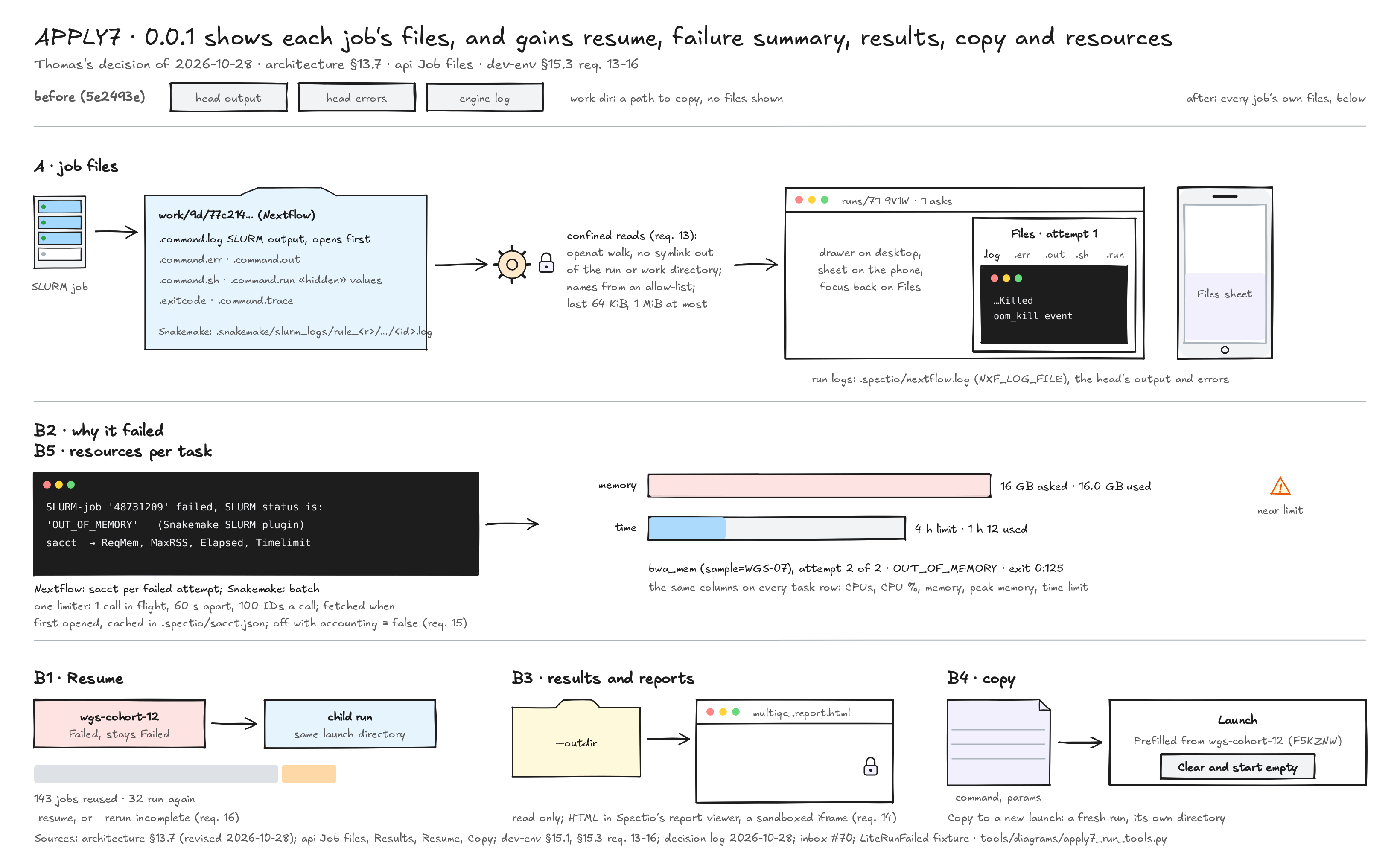

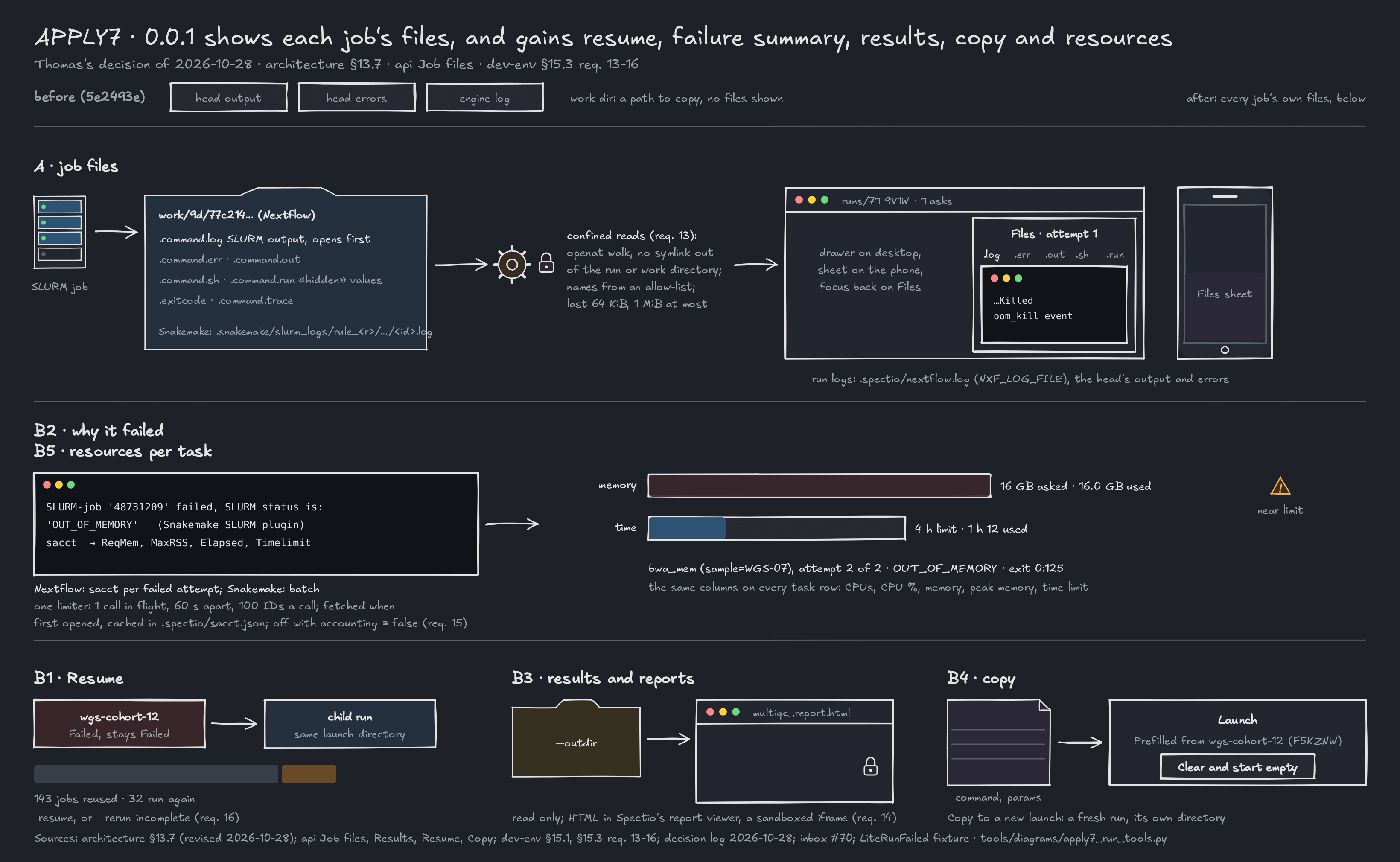

• apply7_run_tools (above), new: tools/diagrams/apply7_run_tools.py, entry apply7-run-tools in docs/assets/media.yaml. Rendered light and dark; both PNGs were opened.
• Review round: apply7_run_tools re-rendered with the "before" strip and the B2 wording, both PNGs opened; lite-launch regenerated (banner, outdir warning); lite-run-detail and lite-run-detail-phone regenerated with no change in the image, since their changes are below the fold; lite-runs unchanged.
• Screenshots lite-run-detail, lite-launch and lite-run-detail-phone regenerated with python3 tools/media/shots.py run --shot <id> --theme light, because their boards changed (Copy menu, prefilled banner); lite-runs is unchanged. A PR carrying them needs the screenshots label.

Findings and open questions

• Inbox #70 (assumed): .command.run shown with its values hidden; the Snakemake job command not stored; runs Spectio launches keep every SLURM log; sacct as in requirement 15, to be checked with the EMBL cluster admins.
• [to be validated]:
  • the sacct field names and their load on the EMBL accounting database;
  • which .snakemake/log/ file belongs to a run (spike T1);
  • whether --unlock is needed after a head was stopped (spike T1);
  • the plugin's submission message for releases other than 2.8.0;
  • the log path of array jobs (--slurm-array-jobs), a suspected plugin bug;
  • whether sacct -B shows job scripts at EMBL;
  • whether a MultiQC report renders under the sandbox policy (P1 Task 31).
