T3 · Mini SLURM with sind¶
Done 2026-10-28 · CI-driven (inbox #51 option (b), assumed) · slurm-mini, slurm-site and slurm-rest up in 14–35 s on ubuntu-24.04 (the three green runs), Slurm 26.05.5 · both engines green on slurm-site with every failure mode of the synthetic pipelines · every §3.5 pending reason the probes set, plus OUT_OF_MEMORY, TIMEOUT and NODE_FAIL · slurmrestd answers with a JWT on the first try · a Snakemake head in sbatch works · 24 fixtures, 382 kB · reviews: code and security approve in round 2 (round 3 on the follow-ups), docs 13/14 · 6 CI runs, the last green in 17 min 11 s

Every record in the figure is in a fixture of tests/fixtures/slurm/slurm-26.05.5/ (run 40680736055).
What changed¶
The spike t3-ci proved the approach on a GitHub runner; this step keeps its scripts in durable form and widens the scope to the three profiles, every failure mode and slurmrestd.
- Cluster profiles, dev-environment §4.1:
dev/slurm/cluster.sh up mini|site|rest,down mini|site|rest, with the sind configsdev/slurm/site.yamlanddev/slurm/mini.yaml.slurm-site: controller, db (slurmdbd), submitter,worker-[0-1]inhtc,worker-2inbigmem; accountslabandcapped(MaxJobs=1),AccountingStorageEnforce=associations,limits,ConstrainRAMSpace=yes,SlurmdTimeout=45.slurm-rest: the same plus sind'sapinode (slurmrestd with JWT).slurm-mini: controller, submitter, one worker inhtc, no db.- The data directory
$SLURM_DATA(default.scenarios/slurm, gitignored) is mounted into every node at its own path. The tools are installed into it bydev/bootstrap.sh(pins ofdev/versions.env: sind 0.15.0, node image by digest), so the engines run on the submitter as on a login node.
- Scenarios,
tests/slurm/scenarios.sh. Each prints aRESULTline, writes its fixtures and exits 1 on an unexpected outcome.nextflow[:IDS],snakemake[:IDS]: the unchanged harnessrun_scenarios.pyon the submitter,-profile test,slurmor--workflow-profile profiles/slurm. After each scenario, thesqueueandsacctrecords of its first task job that did not endCOMPLETEDbecome fixtures.- Each engine scenario must leave at least one Slurm job, and every scenario but
happyat least one job that did not endCOMPLETED; the fixture job is the first that failed by itself (FAILED,OUT_OF_MEMORY,TIMEOUT,NODE_FAIL), not one the engine cancelled. Onslurm-mini, which has no accounting, the jobs are counted withsqueueand onlyhappyruns. probes: a real OOM, a time limit, an association limit, two-CPU jobs that must pend withResourcesandPriority,PartitionTimeLimit,Dependency,DependencyNeverSatisfied,JobHeldUser,JobHeldAdmin(scontrol hold), a maintenance reservation,NODE_FAILby a power cut, and pending jobs cancelled by root, which must readCANCELLED by 0. Every one of these must appear.heads: the Snakemake harness insidesbatch --waitonbigmem.rest: a token fromscontrol token, thenGETofping(v0.0.43tov0.0.45),jobs,nodes,partitionsandslurmdb/jobs, each of which must answer 200; a call without a token must get 401; spx's token sent withX-SLURM-USER-NAME: rootmust not cancel a held job of root's.
- CI,
.github/workflows/pipelines-slurm.yml, five parallel jobs:nextflow(five scenarios, then the probes),snakemake-a(happy,flaky_retry),snakemake-b(oom_fatal,timeout_fatal,tool_error_then_fixed_resume, then the head insbatch),rest,mini(happy). It runs on a push to any branch that touches its paths, nightly and on manual dispatch, withpermissions: {}at the top andcontents: readfor the job, no secrets, a 40-minute timeout, actions pinned by SHA and no${{ }}inrun:. Fixtures go to theslurm-fixtures-*artifacts.ci.ymldoes not call it, so it is not part ofci-ok. - Fixtures,
tests/fixtures/slurm/slurm-26.05.5/: 24 JSON files, 382 kB, from theslurm-fixtures-*artifacts of run 40680736055. One change: the runner's checkout path/home/runner/work/spectio/spectiois replaced by$REPO(sed); otherwise byte-identical. Each has a_fixtureobject with the Slurm version, the source run and the command. - Spec rows, dev-environment: the three profile rows of §4.1 that this step builds, and the
pipelines-slurm.ymlrow of §11. - Research note, copied from
spike/t3-cias evidence: Spike t3-ci, added to the nav. - Security. No credential is written on the host or in the mounted data directory: sind creates the munge and JWT keys inside the containers, and the JWT lives only in the environment of one command on the submitter (
tests/slurm/rest_get.pysends it and never prints it).tests/slurm/fixture.pyrefuses to write a document that looks like a JWT, a token header, a munge credential or a key, andtests/slurm/test_fixture.py(run by the workflow) proves it on a made-up JWT. The harness reports are no longer uploaded. Agrepof the committed fixtures foreyJ…,SLURM_JWT,X-SLURM-USER-TOKEN,MUNGE:andPRIVATE KEYfinds nothing.cluster.shaccepts only a plain absoluteSLURM_DATA. Downloads are the ones ofdev/bootstrap.sh, pinned by hash; the sind images are pinned by digest. - Compared with the spike (CR-T3-09; the note is unchanged):
- fixtures go to artifacts (
fixture.pywrites files), not to fenced, hashed blocks in the job log;extract_fixtures.pyis gone; - five parallel jobs instead of one sequential job, and a data directory under the checkout (
.scenarios/slurm) instead of/data; - more scenarios per engine (
timeout_fatal,flaky_retry,tool_error_then_fixed_resume), more pending reasons,slurm-restandslurm-mini; - only the Snakemake head runs in
sbatch(the spike also ran the Nextflow head), as the prompt asks; - fixture names carry the scenario, and the directory carries the Slurm version.
- fixtures go to artifacts (
- Deferred (review round 1, record), each also in the differences below:
- CR-T3-02, the rest of it: head
OUT_OF_MEMORY, headTIMEOUT,PREEMPTED,BOOT_FAIL. Head OOM and walltime are reachable but need a head-sized scenario;PREEMPTEDneeds a preemption setup (QoS or partition priority);BOOT_FAILis likely unreachable on sind, whose nodes are containers that are already up. - CR-T3-03: partition
gpuwith fake GRES (no test in W3 asks for a GPU request, and fake GRES on sind is unverified), and theslurm-minisignal-drain scenario (it needs a head job driven by runner code). oom_once_retryis not run on SLURM:oom_fatalcovers the same injection, and the retry logic is the engine's.- SEC-T3-01: the tools that the nodes put on
PATHlive in the data directory, which jobs in the cluster can write. T4 has the same convention (the repository mounted into the kind nodes). - Neither engine's
timeout_fatalyields a SlurmTIMEOUT(differences 8 and 9). - Also not built:
slurm-versions(25.11), fairshare, pre-flight, and the runner-restart test onslurm-mini(it needs runner code).
- CR-T3-02, the rest of it: head
Why¶
Prompt: next-phase.md · T3. It asks for the three sind profiles, the synthetic pipelines on slurm-site with each failure mode, squeue / sacct / sinfo --json and slurmrestd answers as golden fixtures, a check that each pending reason and failure class of schedulers §3.5 appears, NODE_FAIL by a power cycle, and whether a Snakemake head in sbatch works for the 0.0.1 fallback. sind cannot run in a Claude Code cloud session (cgroup v1), so the loop runs in CI: option (b) of inbox #51, assumed — pending Thomas. No decision-log entry: the step decided no behaviour; the differences below wait for TRIAGE3.
How to test¶
On a machine whose Docker runs on cgroup v2 (not a Claude Code cloud session), from the repository root:
export SLURM_DATA=$PWD/.scenarios/slurm SPECTIO_HOME=$PWD/.scenarios/slurm/tools \
SPECTIO_BIN=$PWD/.scenarios/slurm/tools/bin UV_PYTHON_INSTALL_DIR=$PWD/.scenarios/slurm/tools/python
mkdir -p "$SLURM_DATA" && bash dev/bootstrap.sh && bash dev/slurm/cluster.sh up site && \
for s in nextflow:happy,oom_fatal probes snakemake:oom_fatal heads; do CLUSTER=site bash tests/slurm/scenarios.sh "$s" || break; done
Java 17 or later must be on PATH or in JAVA_HOME: up copies it into the data directory. Fixtures land in .scenarios/slurm/fixtures/. bash dev/slurm/cluster.sh down site removes the cluster. For slurmrestd, up rest and CLUSTER=rest bash tests/slurm/scenarios.sh rest. In CI, push a change under tests/slurm/, or dispatch pipelines-slurm.yml once it is on main.
Evidence¶
CI runs of pipelines-slurm.yml on autopilot/T3, then on autopilot/T3-followups:
| Run | Commit | Result | Wall clock | What changed after it |
|---|---|---|---|---|
| 40675777338 | 6861384 |
green, 5 of 5 jobs | 12 min 53 s | A failed ALIGN array task pulled its whole array into the fixture (161 kB, 20 jobs): fixtures now keep the task's own job id (sacct JobIDRaw). |
| 40677516348 | 4f7c60c |
green, 5 of 5 jobs | 11 min 57 s | Review round 1 on this head: the fixes are in 53c287d. |
| 40679302148 | 53c287d |
rest red; mini green; the others cancelled by the next push |
— | spx's token with X-SLURM-USER-NAME: root got 200 on GET ping: the check now tests the effect (difference 14). |
| 40679709039 | 09ed12b |
mini red; rest green; the others cancelled by the next push |
— | The new job-count check called sacct on slurm-mini, which has no accounting: squeue there. |
| 40680311800 | 05fa754 |
snakemake-b red; mini and rest green; the others cancelled by the next push |
— | The accounting test sacct -j 0 fails on slurm-site too (job id 0 is invalid), so every engine scenario took the slurm-mini path: the test now queries the last hour. |
| 40680736055 | e2a9f6d |
green, 5 of 5 jobs | 17 min 11 s | Its fixtures are committed. |
| 40684589839 | 3d01ea5 |
rest green; the others cancelled by the next push |
— | Round-2 follow-ups. The positive control passed but read spx's cancelled job as gone: squeue -j without --states=all lists no CANCELLED job. |
| 40684851443 | e5011c3 |
green, 5 of 5 jobs | 16 min 36 s | The control now reads CANCELLED. |
Timings (seconds) per job, run 40680736055:
| Job | Profile | Bootstrap | Cluster up | Scenarios | Job total |
|---|---|---|---|---|---|
nextflow |
slurm-site |
34 | 20 | 486: five scenarios 377, probes 109 | 549 |
snakemake-a |
slurm-site |
42 | 27 | 438 | 518 |
snakemake-b |
slurm-site |
44 | 18 | 886: three scenarios 523, head in sbatch 363 |
958 |
rest |
slurm-rest |
39 | 22 | 4 | 76 |
mini |
slurm-mini |
61 | 35 | 113 | 226 |
Per scenario, run 40675777338 (before the review fixes): Nextflow happy + oom_fatal + timeout_fatal + flaky_retry + tool_error_then_fixed_resume 369 s; probes 99 s (NODE_FAIL 69 s after the power cut); Snakemake happy + flaky_retry 529 s; oom_fatal + timeout_fatal + tool_error_then_fixed_resume 471 s; Snakemake head in sbatch 234 s; rest 5 s; slurm-mini Nextflow happy 114 s.
Result lines of run 40680736055:
RESULT nextflow: happy=pass;not-completed:[] oom_fatal=pass;not-completed:[1×CANCELLED 3×FAILED|137:0 ] timeout_fatal=pass;not-completed:[3×FAILED|140:0 ] flaky_retry=pass;not-completed:[2×FAILED|1:0 ] tool_error_then_fixed_resume=pass;not-completed:[1×FAILED|1:0 ]
RESULT probes: pending=AssocMaxJobsLimit PartitionTimeLimit Dependency DependencyNeverSatisfied JobHeldUser JobHeldAdmin ReqNodeNotAvail res:[PENDING/Resources PENDING/Priority PENDING/Priority] oom=OUT_OF_MEMORY timeout=TIMEOUT node_fail=NODE_FAIL after 74 s; root scancel=CANCELLED by 0
RESULT snakemake: happy=pass;not-completed:[] flaky_retry=pass;not-completed:[2×FAILED|1:0 ]
RESULT snakemake: oom_fatal=pass;not-completed:[3×FAILED|1:0 ] timeout_fatal=pass;not-completed:[3×FAILED|1:0 ] tool_error_then_fixed_resume=pass;not-completed:[3×FAILED|1:0 ]
RESULT heads: snakemake head in sbatch: happy pass, head COMPLETED|0:0; plugin says: You are running snakemake in a SLURM job context. This is not recommended, as it may lead to unexpected behavior. If possible, please run Snakemake directly on the login node.
RESULT rest: ping-v0.0.43 200 732 ping-v0.0.44 200 731 ping-v0.0.45 200 712 jobs 200 20183 nodes 200 8323 partitions 200 8957 slurmdb-jobs 200 18110 no-token=401 spx-token-as-root:DELETE-root-job=511,root-job=PENDING
RESULT nextflow: happy=pass;jobs-in-squeue:65
With the round-2 follow-ups, run 40684851443 adds the positive control (spx deletes its own held job) to the rest line:
RESULT rest: ping-v0.0.43 200 731 ping-v0.0.44 200 731 ping-v0.0.45 200 712 jobs 200 20183 nodes 200 8368 partitions 200 8957 slurmdb-jobs 200 18108 no-token=401 spx-token-own:DELETE-own-job=200,own-job=CANCELLED spx-token-as-root:DELETE-root-job=511,root-job=PENDING
not-completedcounts the task jobs of the scenario that did not endCOMPLETED, byState|ExitCode;happyhas none.KNOWN GAPlines: for Snakemakeoom_fatal, the only failed harness check is "exit code 137 not seen"; it is accepted explicitly, and every other check applies (difference 1 below).- Snakemake head in
sbatch: works. The head job endsCOMPLETED 0:0andhappypasses; the plugin logs "You are running snakemake in a SLURM job context. This is not recommended…" and clears theSLURM_*variables before it submits (spike note, Result). So the 0.0.1 head-job design works for this pipeline and the fallback of dev-environment §15.3 is not needed for it. Not tested: cancelling the head, a head at its walltime. - slurmrestd: works on the first try. All three
pingversions answer 200, so slurmrestd 26.05.5 servesv0.0.43,v0.0.44andv0.0.45; every answer namesdata_parser/v0.0.45, Slurm 26.05.5. A call without a token gets 401. spx's token withX-SLURM-USER-NAME: root:GET pinganswers 200 (run 40679302148),DELETEof root's held job answers 511 and the job staysPENDING, while the sameDELETEof spx's own held job, with spx's own name, answers 200 and the job endsCANCELLED(run 40684851443). The 511 body reads"error": "Protocol authentication error", "error_number": 1007, "source": "slurm_kill_jobs()": slurmctld refused the kill request as an authentication error, and slurmrestd mapsSLURM_PROTOCOL_AUTHENTICATION_ERRORto 511 Network Authentication Required (src/common/http.c:148, branchslurm-26.05, read 2026-10-28).
Review (record): round 1 on 4f7c60c, code-reviewer changes (1 blocker, 2 majors, 7 minors), security-reviewer approve (4 minors); the fixes are in 53c287d, 09ed12b, 05fa754 and e2a9f6d, proved by run 40680736055. Round 2 on 41428f5 (the delta): both approve, with 5 and 3 minors; the docs ones are fixed, the test ones (a positive control for the impersonation check, accounting chosen from the profile, the fixture guard over every pattern and over the committed fixtures, in ci-ok) are fixed on autopilot/T3-followups in 3d01ea5 and e5011c3, proved by run 40684851443, and SEC-T3-06 goes to TRIAGE3. doc-reviewer approve, 13/14. shellcheck -x and bash -n pass on dev/slurm/cluster.sh, dev/slurm/env.sh and tests/slurm/scenarios.sh; tests/slurm/test_fixture.py, 4 tests (one with a subtest per credential pattern, one per committed fixture), passes locally, and runs in the unit job of ci.yml on the follow-ups PR.
CODE step=T3 review=approve b/M/m=1/2/16 security=approve b/M/m=0/0/11 rounds=3 simplify=notrun -0/+0 tests=pass
Fixtures (tests/fixtures/slurm/slurm-26.05.5/):
| File | Holds |
|---|---|
nextflow-<scenario>-{squeue,sacct}.json, 4 scenarios |
the first not-COMPLETED task job of oom_fatal (FAILED 137:0), timeout_fatal (FAILED 140:0), flaky_retry and tool_error_then_fixed_resume (FAILED 1:0) |
snakemake-<scenario>-{squeue,sacct}.json, 4 scenarios |
the same four on Snakemake, all FAILED 1:0 |
squeue-pending-reasons.json |
eleven pending or running jobs: AssocMaxJobsLimit, Resources, Priority, PartitionTimeLimit, Dependency, DependencyNeverSatisfied, JobHeldUser, JobHeldAdmin, ReqNodeNotAvail with "Reserved for maintenance" |
sacct-probes.json |
OUT_OF_MEMORY (exit 0, signal 125), TIMEOUT, NODE_FAIL (exit 1, ERROR), five jobs cancelled by root (CANCELLED, kill_request_user: root), the finished jobs that were pending |
sinfo.json, sinfo-node-down.json |
the partitions, then worker-2 DOWN, NOT_RESPONDING |
rest-{jobs,nodes,partitions,slurmdb-jobs}.json |
slurmrestd answers, v0.0.45; jobs kept to one COMPLETED and one FAILED (exit 3) |
Figures and media¶

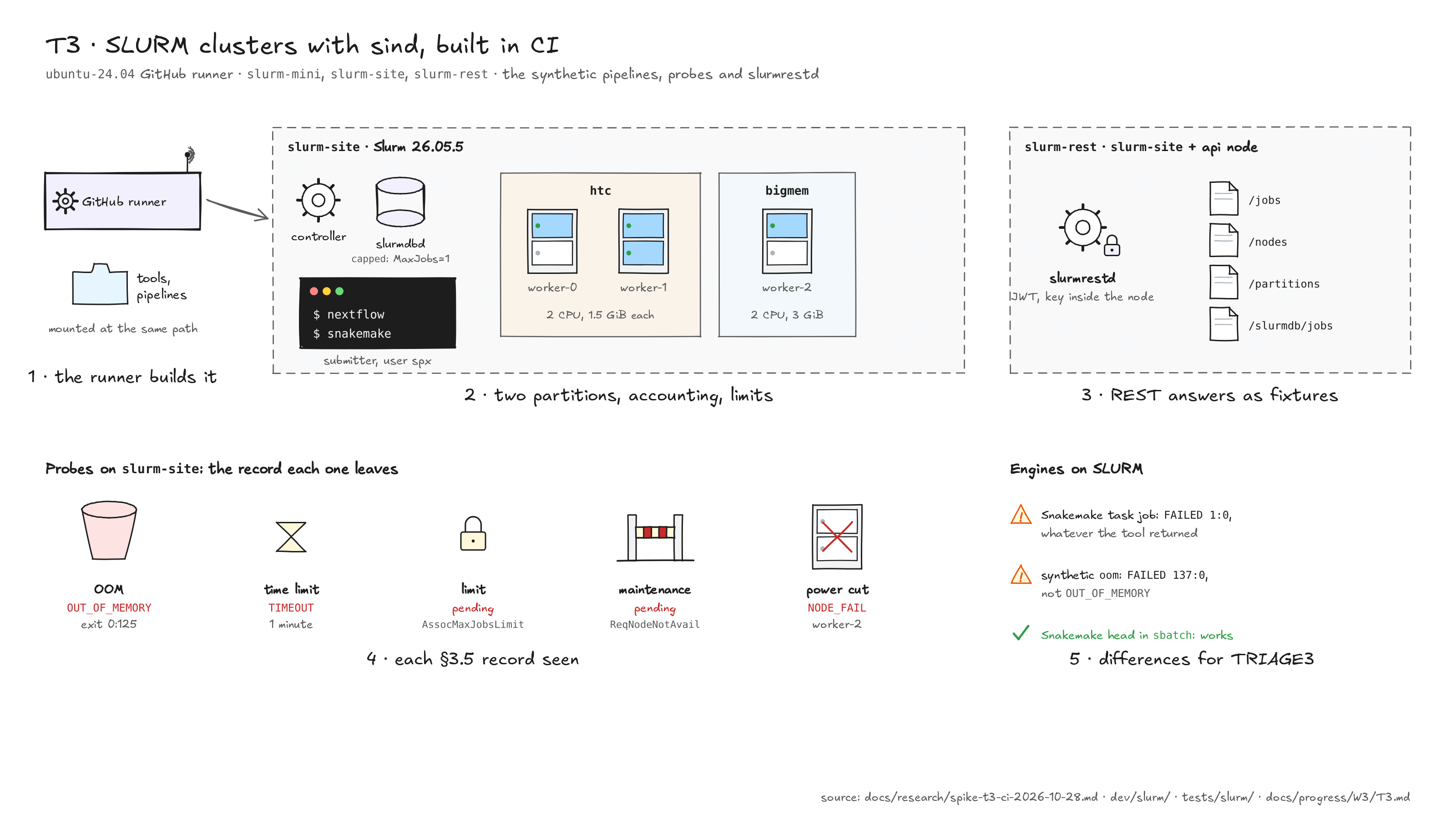

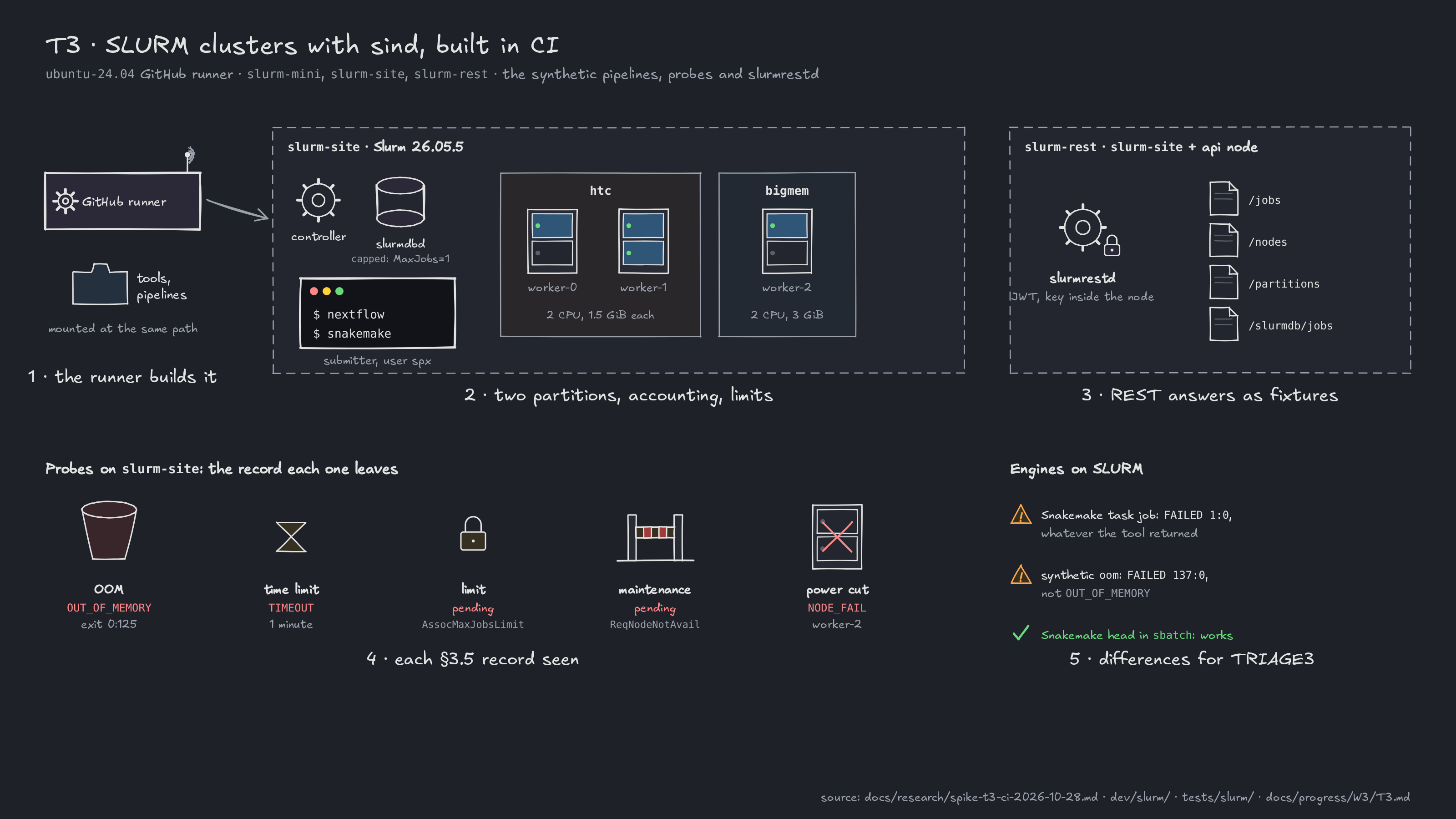

t3-sind-slurmsketch, light and dark, at the top of this page:python3 tools/diagrams/t3_sind_slurm.py.- No cast or screenshot:
cluster.shandscenarios.share development scripts with no user flow, and How to test shows the commands and theirRESULTlines.
Findings and open questions¶
Differences with the specs, for TRIAGE3; the specs are not edited, except the §4.1 and §11 rows this step builds (items 10 to 12). Items 1 to 7 are the spike's (note, Differences); T3 runs confirm them except where said.
- Snakemake on SLURM hides the task exit code (§3.5
tool_error): note item 1. Confirmed onoom_fatal,timeout_fatal,flaky_retryandtool_error_then_fixed_resume: every failed Snakemake task job isFAILED 1:0. - The synthetic
oommode is not an OOM for Slurm (§3.5oom; dev-environment §3 "On a cluster, SLURM reportsOUT_OF_MEMORY"): note item 2. Nextflowoom_fatalisFAILED 137:0; only the probe's real allocation givesOUT_OF_MEMORY. - Snakemake status polling dominates small runs: note item 3. The test arguments keep 5 s.
- Engine cleanup looks like an external cancel (§3.5
cancelled_external): note item 4. Nextflowoom_fatalleft 6CANCELLEDjobs in run 40675777338 and 1 in run 40680736055. - The pending reason in
--jsonis split in two fields, andsacctkeeps the last pending reason on a finished job: note item 5. New detail: of the eleven probe jobs, only the maintenance one has a non-emptystate_description; forAssocMaxJobsLimit,Resources,Priority,PartitionTimeLimit,Dependency,DependencyNeverSatisfied,JobHeldUserandJobHeldAdmin,state_reasonalone carries the reason. sacct -sreturned nothing in a spike run: note item 6. Not retested;scenarios.shfilters states itself.NODE_FAILhas exit 1,ERROR: note item 7. Confirmed.- New: a Nextflow task over its
timeon SLURM endsFAILED 140:0, notTIMEOUT(§3.5timeout: "TIMEOUT"). Nextflow adds--signal B:USR2@30to every task job unless the user set--signal(SlurmExecutor.groovy:71-75at v26.10.4), and the task wrapper trapsUSR2(command-run.txt:192); 140 is 128 + 12 (USR2). Intimeout_fatalthe job had a 1-minute limit and ended after 5 s (nextflow-timeout_fatal-sacct.json, job 150). So the task is stopped from inside before Slurm's limit, and the Slurm record never saysTIMEOUT. The classifier must mapFAILED 140on a Nextflow SLURM task totimeout, as the synthetic pipeline'serrorStrategyalready does. Whether this holds for limits well above a minute, whereUSR2should come 30 s before the end, is [to be validated], and so is why it came after about 5 s on a 60 s limit (Slurm may send the--signalsignal earlier than asked [to be validated]). - New: the Snakemake synthetic
timeoutis a tool exit, not a scheduler timeout. The Snakefile wraps the task intimeout, sotimeout_fatalisFAILED 1:0on SLURM (item 1). Only the probe produces a SlurmTIMEOUT. For atimeoutclass test with Snakemake on SLURM, the scenario would need aruntimethe job really exceeds. slurm-minineeds a partitionhtc, because both engines'slurmprofiles of the synthetic pipelines name it. The §4.1 row did not say so;dev/slurm/mini.yamladds it, and the row now does.slurm-sitehas nogpupartition yet (§4.1 row: "gpu(fake GRES)"). Not in this step's runs; the row now marks it as planned.- The §11 row said
pipelines-slurm.ymlis called byci.ymland usesGSI-HPC/sind-action@v2. It is standalone (push with a path filter, nightly, manual), outsideci-ok, and gets sind fromdev/bootstrap.sh. The row now says so. The Required checks paragraph of §11 still calls the pipeline workflows reusable workflows thatci.ymlcalls, as forpipelines-k8s.yml(T4). - slurmrestd serves
v0.0.43tov0.0.45on 26.05.5 (ping200 on each). Schedulers §3data_parsernegotiation can rely on at least these three on 26.05; which versions 25.11 serves is not measured (its sind images have no slurmrestd). - New:
X-SLURM-USER-NAMEwith a user's own token. spx's token sent withX-SLURM-USER-NAME: rootgets 200 onGET ping(run 40679302148), and 511 onDELETEof a held job of root's, which stays pending (run 40680736055). Run 40684851443 adds the control: spx's own name on spx's own held job answers 200 and cancels it. So the header does not let a user act as root, but slurmrestd does not refuse the mismatch outright: the 511 is slurmctld refusing the kill RPC asProtocol authentication error(1007), mapped to 511 insrc/common/http.c:148(branchslurm-26.05, read 2026-10-28). Whypingpasses is [to be validated]. For schedulers §3: Spectio must send the token's own user name and treat a 2xx onpingas no proof of identity. - New: who cancelled is a user name in
sacct --json. §3.5 mapsCANCELLED by <uid>, the text form ofsacct(CANCELLED by 0in run 40680736055). Insacct --jsonthe state is onlyCANCELLED, and the canceller iskill_request_user: "root", a name, insacct-probes.json(the five cancelled probe jobs; every other record has""). The classifier must read that field and compare it with the run's user name. - Deferred from review round 1: head
OUT_OF_MEMORYand headTIMEOUT(§3.5 "Head out of memory", "Head walltime"),PREEMPTED(needs a preemption setup) andBOOT_FAIL(likely unreachable on sind) are not produced; partitiongpuand theslurm-minisignal drain are not built;oom_once_retryis not run on SLURM; SEC-T3-01, tools onPATHfrom a cluster-writable mount (same in T4). See What changed, Deferred.
Open questions.
- Should
pipelines-slurm.ymljoinci.ymlandci-ok? Its longest job takes about 16 minutes, so probably nightly and on path changes only. slurm-versions(25.11) and partitiongpu: the prompt asks for the §4.1 profiles, so they are deferred, not out of scope. Build them in a later step?
