APPLY4 · Apply Thomas's 2026-10-28 answers on cluster access

Done 2026-10-28 · PR #47 and its fix branch autopilot/apply-access-tmux-review · SSE kept (decided) · SQLite a rebuildable index (assumed, inbox #64) · laptop tool spectio-open · security review: 10 findings, all applied as §15.3 requirements 8–11 · doc review approve 12/14, changes applied

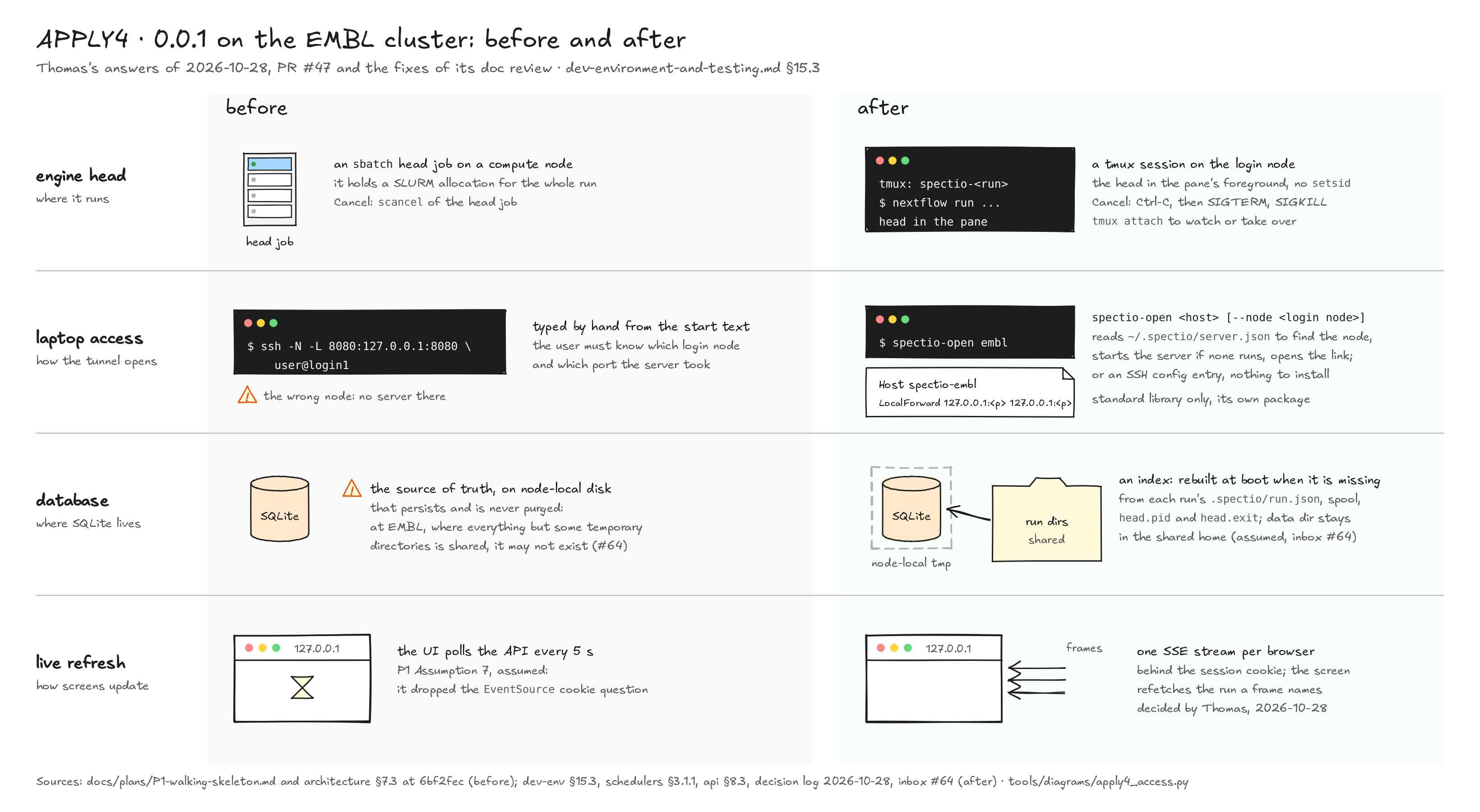

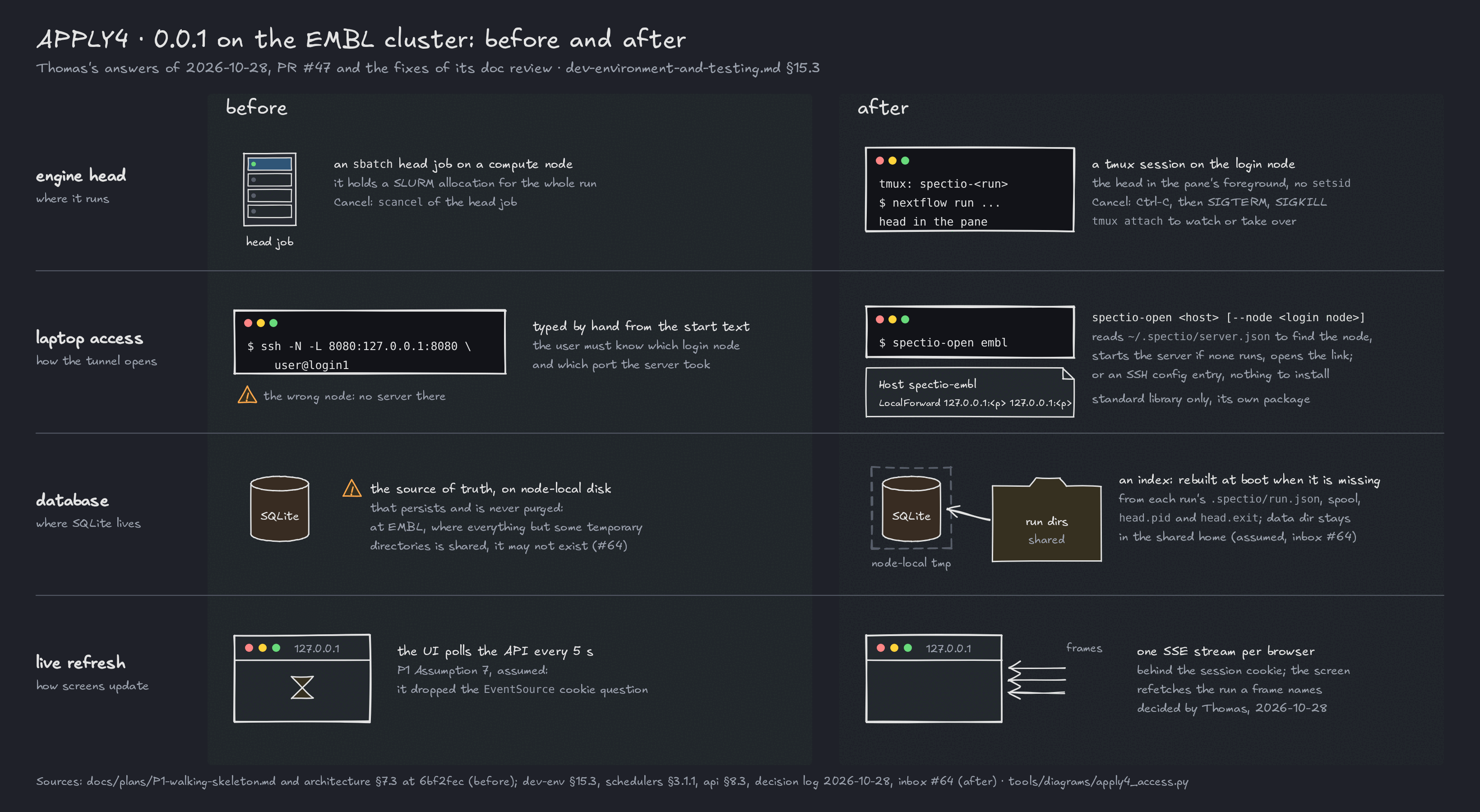

APPLY4 figure, before and after, in four rows. Engine head: before, an sbatch head job on a compute node, cancelled with scancel; after, a tmux session on the login node, the head in the pane's foreground, cancelled with Ctrl-C then SIGTERM and SIGKILL, and tmux attach to take over. Laptop access: before, an ssh -L tunnel typed by hand to the right login node and port; after, spectio-open with an optional login node, which reads ~/.spectio/server.json, or an SSH config entry with LocalForward. Database: before, SQLite as the source of truth on a persistent node-local disk that may not exist at EMBL; after, SQLite as an index in a node-local temporary directory, rebuilt at boot from the shared run directories, assumed pending inbox #64. Live refresh: before, the UI polls every 5 seconds; after, one SSE stream per browser, decided by Thomas APPLY4 figure, before and after, in four rows. Engine head: before, an sbatch head job on a compute node, cancelled with scancel; after, a tmux session on the login node, the head in the pane's foreground, cancelled with Ctrl-C then SIGTERM and SIGKILL, and tmux attach to take over. Laptop access: before, an ssh -L tunnel typed by hand to the right login node and port; after, spectio-open with an optional login node, which reads ~/.spectio/server.json, or an SSH config entry with LocalForward. Database: before, SQLite as the source of truth on a persistent node-local disk that may not exist at EMBL; after, SQLite as an index in a node-local temporary directory, rebuilt at boot from the shared run directories, assumed pending inbox #64. Live refresh: before, the UI polls every 5 seconds; after, one SSE stream per browser, decided by Thomas

Left: the plan and the specs on main at 6bf2fec, before PR #47. Right: after PR #47 and the fixes of its doc review. Sources are named under the figure.

This step is outside pipeline.yaml: Thomas answered questions about 0.0.1 at the GO gate, and the answers were applied in two parts.

What changed

Part 1, PR #47 (squash f51dca9, 2026-10-28). Thomas's answers: 0.0.1 targets the EMBL cluster only; its login nodes have no time limit and tmux installed; the engine head runs in a tmux session on the login node, never in sbatch; laptop access through an SSH config entry and a small laptop tool, side by side. Applied to:

  • dev-env §15.3 (Launch, Access, the state file ~/.spectio/server.json, Prerequisites at EMBL) and §15.1;
  • schedulers §3.1.1 (the tmux launcher) and its dated note in schedulers §3.1;
  • mvp-0.0.1.md §1;
  • P1: Task 10 became the tmux launcher, and a new Task 24 covers laptop access (24 tasks);
  • inbox #64 (where SQLite goes at EMBL), and the decision-log entry head in tmux on the login node;
  • the figures mvp001_cluster and p1_skeleton, redrawn.

Part 2, the doc review of PR #47 (changes, 9/14), plus two answers from Thomas the same evening:

  • Live refresh over SSE, decided (Thomas). It is recorded in api §8.3 (dated note), ui-spec §7, mvp-0.0.1.md §1, dev-env §15.3 req. 3 and §15.1. P1 Assumption 7 now plans one stream, GET /api/v1/events/stream, with tests in Tasks 18 and 20.
  • SQLite as a rebuildable index (assumed — pending Thomas, inbox #64). At EMBL everything but some temporary directories is shared (Thomas). The database goes in <node-local tmp>/spectio-<uid>/, 0700, and the run directories hold the truth (.spectio/run.json, the spool, head.pid, head.exit). The server rebuilds the index at boot when it is missing. Recorded in dev-env §15.3 (Where data lives, Server restart, the diagram), architecture §7.2 and §7.3 (dated notes), inbox #64 (new option (d)), P1 Assumption 21 and Tasks 2, 8, 9 and 11 (test_rebuild_from_run_dirs).
  • The review's required changes:
# Review finding Fix
1 P1 Task 20 still described a head job Task 20 shows the tmux session, alive or exited, login node, exit code, and a confirm text without "head job"; Task 18's field is head: {session, node, alive, exit_code}; Task 20 is in the log entry's Changed list
2 two names for the laptop tool spectio-open everywhere: §15.3, mvp-0.0.1.md §1, the log, P1 Goal, M5, Task 24, both figures; the log entry keeps its heading so links stay valid, with a dated note
3 unattended spectio init against the network-file-system rule the database defaults to a node-local temporary directory (Part 2); P1 Task 8 test_init_defaults_unattended
4 --print-link from another login node it reads the state file, prints ssh <node> spectio login --print-link and exits 2 (§15.3, P1 Assumption 9); P1 Task 12 test_print_link_on_other_node
5 Progress · P1 alt text said sbatch, and 23 tasks alt text rewritten for the redrawn figure, with a dated note on the revision
6 no Progress page for the apply this page, its figure (tools/diagrams/apply4_access.py, registered in docs/assets/media.yaml), a link from the Progress index, a journal line
7 packages/spectio-open missing from the layout architecture §6 tree and P1 Global Constraints; Task 24 lists the §6 row under Modify

  • The review's optional changes:

    • 8: the EMBL callout of mvp001_cluster sits in the login-node box, and the cancel text of p1_skeleton sits under the head pane.
    • 9: the §15.3 mermaid diagram gains the spectio-server session and a person attaching.
    • 10: in schedulers §3.1.1 and P1 Task 10, only the tmux server is detached. The head runs in the pane's foreground without setsid, so a Ctrl-C reaches the engine. The cgroup claim is now [to be validated].
    • 11: P1 Assumption 13 says that the head script starts the engine with a cleared, allow-listed environment and then the login shell, as the --export=NONE head job did before. Nothing from the server reaches the engine (Task 9 test_head_env_cleared). The security posture is unchanged.
    • 12: P1 Task 23 cites the dev-env §4.1 note.
    • 13: mvp-0.0.1.md §1 shows [--node <login node>] as optional.
    • 14: schedulers §3.1.1 links to dev-env §15.3 instead of restating the EMBL facts. Part 3, the reviews of the fix branch (000ecd7):

  • Doc review, approve 12/14. Inbox #15 now says spectio-open. The rebuild keeps cancels and launch failures: the runner writes .spectio/cancel before the interrupt and .spectio/launch-failed.json when a launch fails, the manifest is written when the run is created, and a run never launched ends failed (launch_error). test_rebuild_from_run_dirs now covers a cancelled run and a failed launch. Optional changes applied: the SSE frame is a strict subset of api §8.5, the api §8.3 note sits after its "Why", a dated note in architecture §7.2 keeps the runs root outside <data-dir>, the P1 alt text matches the figure, and the M2 badge of p1_skeleton moved up.

  • Security review, changes: 0 blockers, 5 majors, 5 minors, all applied (record). dev-env §15.3 gains a trust-boundaries paragraph, a stricter req. 5 and requirements 8–11: values from the cluster are checked and the link is built on the laptop; the port is fixed and fails closed; run directories are untrusted at rebuild; tmux targets are exact and signals re-check the PID file. The server key moved to the node-local directory. P1 names a test for each (Tasks 2, 9–12, 15, 17 and 24).

  • Decision log: a new entry, live refresh over SSE; SQLite as a rebuildable index; the earlier entry gains the name note, the --print-link behaviour and the review's Changed list.

Why

PR #47 was merged before its independent doc review ran: the fork that applied it could not spawn agents. That review found the plan still carried head-job wording, two names for one laptop tool, and a first start that could not run unattended, because the default data directory broke the network-file-system rule. Thomas's answer on EMBL's shared login nodes settles the third problem: when the database is a rebuildable index, it can live in a temporary directory and be lost without losing a run.

Evidence

  • Docs gate, python3 tools/docs/check.py on this branch:

    mermaid: 5 blocks checked
diagrams: 26 scripts re-run, 52 SVGs compared
media: 126 outputs in the manifest
progress: 39 pages checked
docs gate: 0 failure(s)

  • Strict build: uvx --with mkdocs-material mkdocs build --strict exits 0. Both decision-log anchors linked from the specs exist in the built page: 2026-10-28-001-live-refresh-over-sse-sqlite-as-a-rebuildable-index and 2026-10-28-001-head-in-tmux-on-the-login-node-ssh-config-and-spectio-open.

  • Mermaid: the §15.3 diagram renders with npx -y @mermaid-js/mermaid-cli@11.

  • One name: grep -rln 'spectio open' docs/ tools/diagrams/ --exclude=APPLY4.md prints only the kept heading's file and the docstring that quotes it:

    docs/decisions/log.md
tools/diagrams/mvp001_cluster.py

  • Before: git show 6bf2fec:docs/plans/P1-walking-skeleton.md (Assumption 7 "No SSE in 0.0.1", the head job). After: git diff 6bf2fec -- docs/specs docs/plans docs/decisions docs/reviews/inbox.md.

Figures and media

  • apply4_access (above), new: tools/diagrams/apply4_access.py, entry apply4-access in docs/assets/media.yaml.
  • mvp001_cluster, redrawn for spectio-open, the EMBL callout and the rebuildable index; shown in mvp-0.0.1.md.
  • p1_skeleton, redrawn for the tmux head, SSE, the index and the cancel text; shown on the P1 plan and Progress · P1.
  • Each was rendered light and dark with tools/diagrams, and each PNG was opened and checked for overlaps. No screenshot or cast: nothing in this step runs.

Findings and open questions

  • Inbox #64 stays open: option (d), the rebuildable index, is assumed. [to be validated]: which temporary directory is node-local on the EMBL login nodes and how often it is purged, whether /tmp is polyinstantiated per user, and the systemd-tmpfiles ages; the real-cluster checks of P1 Tasks 8 and 24 confirm them.
  • Accepted risk: the user's own ~/.tmux.conf can weaken or break the tmux sessions; 0.0.1 keeps the default tmux socket (§15.3 trust boundaries, SEC-137).
  • Still [to be validated] in schedulers §3.1.1: whether the tmux server stays in the cgroup of spectio serve, and whether EMBL kills a user's processes at logout.
  • Review findings: SEC-131 to SEC-140, all applied (record); the doc review's required changes, all applied (Part 3).
