APPLY3 · Apply the findings of the spikes round to the specs

Done 2026-10-28 · 49 of 69 findings reached the specs: 44 applied (2 of them by PR #36), 5 partly applied, 0 not applied · 9 wait for Thomas · 7 specs and decision 0001 changed · no inbox entry added · doc review approve 12/14, changes applied

Left: one cell per finding; a dot marks a fix applied on an assumed inbox answer. Middle: what changed in the specs, to scale, then the work that a partly applied finding still needs outside the specs. Right: what waits for Thomas (one bar unit per finding; #53 also holds the Role part of SPK-T4-02), and the assumed answers that are already in the text.

What changed

• Findings applied to the owning specs. APPLY3 took every finding that TRIAGE3 accepted (44) or assumed (4: SPK-T2-09, SPK-T3-18, SPK-T4-09, SPK-T7-01) in the spikes round, plus the fact part of SPK-T4-02 that inbox #53 allows now. The authoritative list is the decision-log section 2026-10-28 — APPLY3. It gives the specs changed by file and §, the assumed decisions by inbox number, and the follow-ups.
• 7 specs and one decision changed. No new section number was needed, and nothing was renumbered:
  • schedulers-and-monitoring.md: §3.1 (Snakemake head job under sbatch), §3.2 (Snakemake's own status clock), §3.5 (failure classes and pending reasons: FAILED 140 for a Nextflow time limit, FAILED 1:0 for Snakemake, OUT_OF_MEMORY verified, engine cleanup is not an external cancel, state_reason, FailedScheduling, WaitingForQuota), §4 (nf-k8s on 25.10, "queued" from the Kueue visibility API, OOM and Job deadline, Kueue pod integration, pods: create verified);
  • dev-environment-and-testing.md: §1 (checked downloads, Kueue row), §3 (oom_real, node failure, preemption planned), §4 (new rule "Node tools are read-only for jobs"), §4.1 (slurm-versions planned), §4.2 (k8s-kueue), §10.1 (SLURM exit codes), §11 (pipelines-real.yml pin, pipelines-slurm.yml and pipelines-k8s.yml standalone, "Nightly runs"), §15.1 and §15.3 (Snakemake head job);
  • api-and-data-model.md: §7 (attempts.exit nullable, runs.failure on Nextflow), §7.2 (Nextflow mapping from the trace record; new attempt state aborted), §8.2 (a repeated flow completion changes nothing), §10 (coexistence mark becomes a link);
  • synthesis.md: §1 and §2 (nf-tower downloaded on first use; the 14 Snakemake LogEvent types), §2bis (Tower begin and dag; logger plugin pitfalls), §2ter (Snakemake attempts, checkpoints, temp_removed);
  • checking-scenarios.md: §11.1 (matching task outputs; JOB_INFO at v9.27.1), §11.4 (reuse after a resume), §11.5 (end of stage on Nextflow; stages after a failure);
  • architecture-plugins-and-packaging.md: §7.3 (nf-spectio unpacked into $NXF_HOME/plugins), §13.3 (the sender stops at observer shutdown), §13.4 (logger plugin found on PYTHONPATH);
  • ui-spec.md §3.1 (label "Aborted");
  • decision 0001: a dated "Update 2026-10-28" line. The decision stays as decided.
• Status lines in spikes.md. Each of the 49 findings now ends its Status line with → applied (APPLY3, 2026-10-28): <spec> §<n>, → partly applied (APPLY3, 2026-10-28): … pending: …, or → applied by PR #36 (corpus retry, 2026-10-28): dev-env §10.2. The header gets an APPLY3 count. The rejected findings, the reserved inbox findings and the 3 findings T3 applied keep their TRIAGE3 status.
• One decision-log section for the whole step: 2026-10-28 — APPLY3.

Before and after. Each row was read in git diff 90180cb HEAD -- docs/specs docs/decisions and matches a bullet of the decision-log section:

Findings	Before	After	Owner now
SPK-T3-09	a task over its time limit on SLURM ends TIMEOUT	a Nextflow task also ends FAILED with exit 140 (--signal B:USR2@30), classed timeout	schedulers §3.5
SPK-T3-03, -02	SLURM OOM kill gives OUT_OF_MEMORY 0:125 [to be validated on sind]	verified on sind, Slurm 26.05.5: signal 125, status SIGNALED; only oom_real triggers it	schedulers §3.5, dev-env §3
SPK-T3-05, -16	not covered	Nextflow's own cleanup of pending jobs (CANCELLED by <uid>, the run's uid) is not an external cancel; sacct --json names the canceller in kill_request_user	schedulers §3.5
SPK-T3-01, SPK-T2-17	attempts.exit listed with no null case	a Snakemake task job on SLURM ends FAILED 1:0; attempts.exit is nullable	schedulers §3.5, api §7
SPK-T2-09	attempt states without aborted	terminal state aborted for attempts still open when a launch ends; not a failure (assumed, #56)	api §7.2, ui-spec §3.1
SPK-T2-07	Nextflow trace statuses map to attempt states [to be validated]	the mapping reads the hooks and trace.status, never handler.status	api §7.2
SPK-T2-06	not covered	a repeated flow completion for the same launch is logged and changes nothing	api §8.2
SPK-T2-01, -02	end of stage on Nextflow = every matching process fired onProcessTerminate	that, and every seen task of those processes completed or cached; unended stages close when the run ends	checking-scenarios §11.5
SPK-T2-05	not covered	the nf-spectio sender stops at observer shutdown, not at onFlowComplete	architecture §13.3
SPK-T2-25, -26	how nf-spectio reaches Nextflow [to be validated]; Snakemake plugin discovery open	unpacked into $NXF_HOME/plugins; the Snakemake logger plugin found on PYTHONPATH, no install	architecture §7.3, §13.4
SPK-T2-12	nf-tower "ships with Nextflow"	a core plugin, downloaded from the plugin registry on first use	synthesis §1, §2
SPK-T4-17	Kueue pod integration "opt-in" [to be validated]	listed in Kueue's default configuration (v0.20.3)	schedulers §4
SPK-T4-05	not covered	Nextflow 25.10 needs the nf-k8s plugin for the k8s executor	schedulers §4
SPK-T4-02 (fact part)	pods: create [to be validated]	verified on k8s-mini; the Role lists wait for inbox #53	schedulers §4
SPK-T3-19	Snakemake head under sbatch or on a service node [to be validated]	works on slurm-site for happy; failures and long runs [to be validated]	schedulers §3.1, dev-env §15.1, §15.3
SPK-T3-20	no rule	"Node tools are read-only for jobs" (not built yet)	dev-env §4
SPK-T4-09, SPK-T7-01	pipeline workflows "Standalone: ci.yml does not call it"; nobody reads the nightly runs	standalone until ci.yml calls them (assumed, #57); the autopilot reads the nightly runs (assumed, #58)	dev-env §11

Why

A finding is only useful once the spec that owns its topic says what was measured. TRIAGE3 decided which findings may proceed; APPLY3 writes them into the specs, with the rules of the apply-findings skill:

• change the spec that owns the topic and link to it from elsewhere ("one owner per topic", CLAUDE.md);
• keep section numbers stable;
• mark every assumed fix with (assumed — pending Thomas, inbox #n), so that one search finds what to revert;
• leave untouched the sections that an open inbox entry blocks (here: the Kubernetes Roles, task-pod tokens, the content of engine events, the slurmrestd token).

The spikes round is the first one built on measurements, not on reading. Its fixes replace [to be validated] marks with links to fixtures and CI runs: the T2, T3 and T4 notes in docs/research/.

Step definition: APPLY3 in docs/playbooks/pipeline.yaml (wave W3, kind: apply, depends_on: [TRIAGE3], rounds [spikes]).

Evidence

What APPLY3 changed, and what it did not. The APPLY3 branch merged autopilot/integration at 90180cb (T3, PR #35, and the corpus retry, PR #36). So the step's own spec diff is the branch against 90180cb, and the T3 rows of dev-env §4.1 and §11 and the corpus text of §10.2 are not in it:

$ git diff --numstat 90180cb HEAD -- docs/specs docs/decisions/0001-nextflow-through-nf-spectio.md
3   1   docs/decisions/0001-nextflow-through-nf-spectio.md
13  7   docs/specs/api-and-data-model.md
3   3   docs/specs/architecture-plugins-and-packaging.md
7   3   docs/specs/checking-scenarios.md
25  13  docs/specs/dev-environment-and-testing.md
22  11  docs/specs/schedulers-and-monitoring.md
13  9   docs/specs/synthesis.md
1   1   docs/specs/ui-spec.md

Most changed lines are long paragraphs or table rows, so the line counts are small.

Each Status line was checked against the diff, not only against the apply notes: one search per finding in the added lines of git diff -U0 90180cb HEAD, and the § taken from the last heading above each hunk. For example:

$ git diff -U0 90180cb HEAD -- docs/specs | grep "^+" | grep -c "handler.status"     # SPK-T2-07, api §7.2
1
$ grep -n "Node tools are read-only" docs/specs/dev-environment-and-testing.md       # SPK-T3-20, dev-env §4
167:**Node tools are read-only for jobs.** Tools that cluster nodes execute come from a location the cluster's job user cannot write, …
$ grep -rno "pending Thomas, inbox #\(56\|57\|58\|60\)" docs/specs | sort | uniq -c
      1 docs/specs/api-and-data-model.md:382:pending Thomas, inbox #56
      1 docs/specs/dev-environment-and-testing.md:180:pending Thomas, inbox #60
      1 docs/specs/dev-environment-and-testing.md:490:pending Thomas, inbox #57
      1 docs/specs/dev-environment-and-testing.md:491:pending Thomas, inbox #57
      1 docs/specs/dev-environment-and-testing.md:505:pending Thomas, inbox #58
      1 docs/specs/ui-spec.md:58:pending Thomas, inbox #56

Every accepted or assumed finding had a matching change. None was left out.

Status lines, read back from the review file:

$ grep -c "Status:" docs/reviews/spikes.md
69
$ grep -c "→ applied (APPLY3" docs/reviews/spikes.md; grep -c "→ partly applied (APPLY3" docs/reviews/spikes.md; grep -c "→ applied by PR #36" docs/reviews/spikes.md
42
5
2

Step	Findings	Applied	Partly applied	Not applied	Waiting for Thomas	Applied by T3	Rejected
T2	27	23	0	0	2	0	2
T3	20	12	1	0	1	3	3
T4	17	6	3	0	5	0	3
T7	5	3 (2 by PR #36)	1	0	1	0	0
Total	69	44	5	0	9	3	8

"Partly" means that the spec text is done and something outside the specs remains:

Finding	In the spec	Still to do
SPK-T4-02	schedulers §4: pods: create verified on k8s-mini	the Role lists, after inbox #53
SPK-T4-15 (SEC-T4-05)	dev-env §1, "Checked downloads"	the code: manifest images by digest, nf-k8s with a sha256, bootstrap.sh --only (with inbox #46)
SPK-T3-20 (SEC-T3-01)	dev-env §4, "Node tools are read-only for jobs"	the code in dev/slurm/ and dev/k8s/
SPK-T4-09	dev-env §11, both rows "standalone until ci.yml calls it" (assumed, #57)	ci.yml calls pipelines-slurm.yml and pipelines-k8s.yml
SPK-T7-01	dev-env §11, "Nightly runs" (assumed, #58)	the autopilot playbook and skill read the scheduled runs

SPK-T7-03 counts as applied: its proposal was the §11 text, and its code part, pipelines-real.yml reading NEXTFLOW_VERSION from dev/versions.env, landed in PR #38 (merged into this branch at 3bafe3e).

Exit criterion. The docs gate and the strict build:

$ python3 tools/docs/check.py
...
diagrams: 21 scripts re-run, 42 SVGs compared
media: 106 outputs in the manifest
progress: 34 pages checked
docs gate: 0 failure(s)
$ uvx --with mkdocs-material mkdocs build --strict
INFO    -  Documentation built in 5.91 seconds

Figures and media

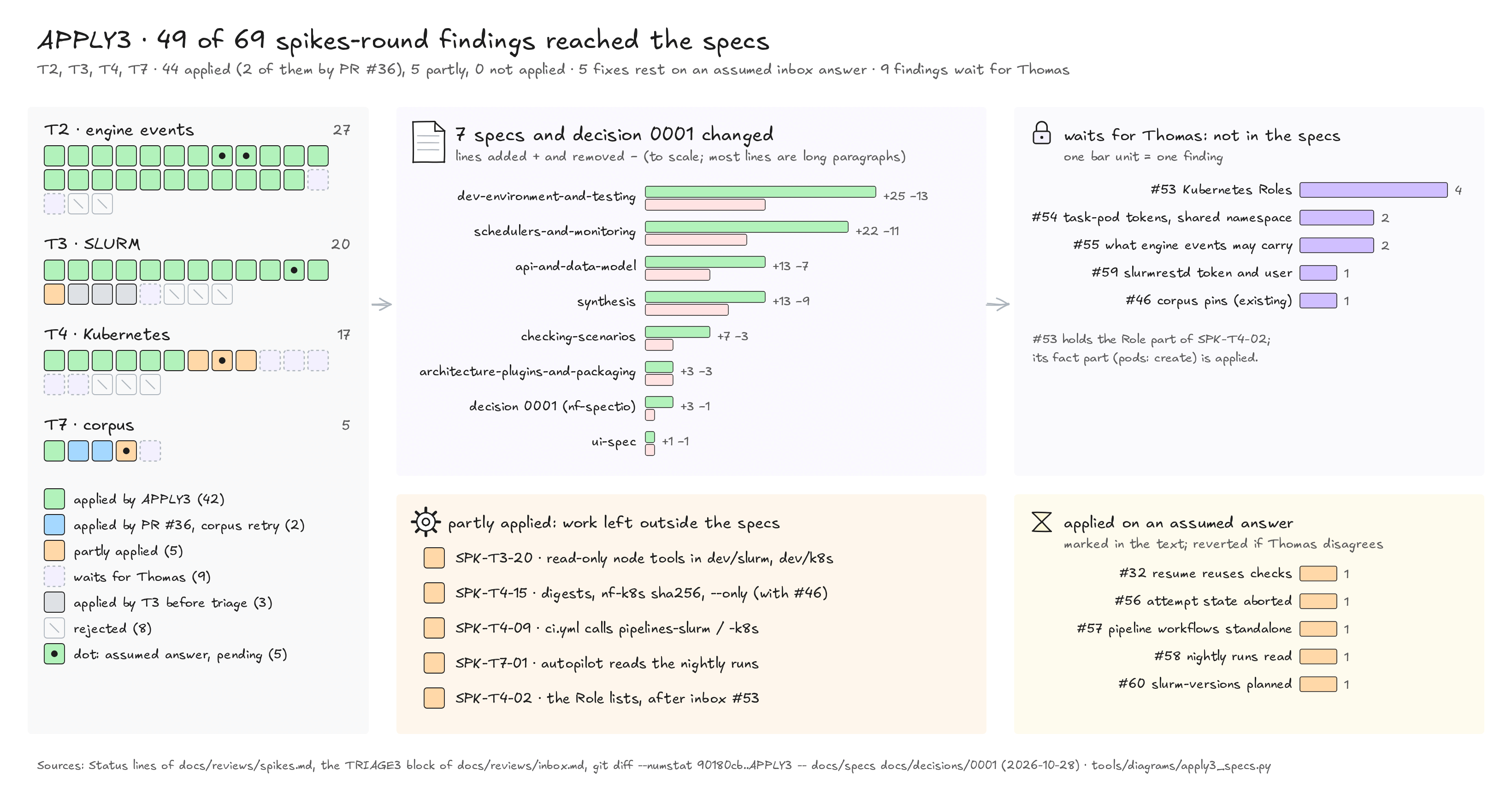

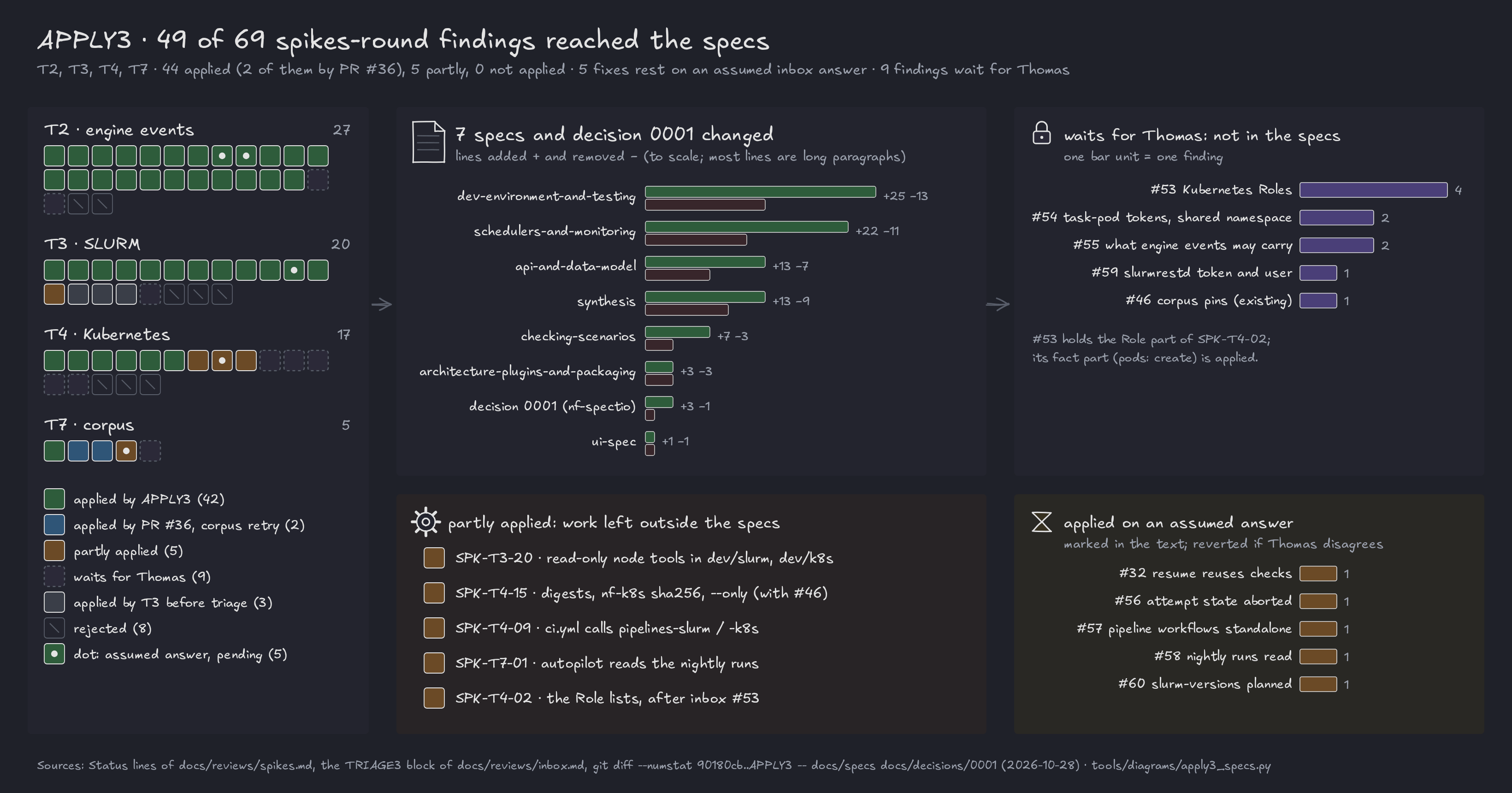

• Step figure at the top of this page (to scale: one cell per finding, bar lengths in lines and in findings). Script: tools/diagrams/apply3_specs.py; outputs docs/assets/diagrams/apply3_specs_{light,dark}.{svg,png}; manifest entry apply3-specs in docs/assets/media.yaml.
• The figure is a map of line changes per spec, not a before-and-after drawing of a mechanism. Two changes are mechanisms: the new attempt state aborted (api §7.2) and the Nextflow end-of-stage rule (checking-scenarios §11.5). Their before and after are in the table under What changed; the other changes are local facts (exit codes, event order, plugin loading), each linked to the T2, T3 or T4 note that measured it.

Findings and open questions

No new inbox entry. What waits for Thomas is already in the TRIAGE3 block of the inbox:

• #53 Kubernetes Roles: SPK-T4-01, -03, -04 and the Role part of -02;
• #54 task-pod tokens and a shared work namespace: SPK-T4-12, -14;
• #55 what engine events may carry: SPK-T2-11, -23;
• #59 slurmrestd token and user: SPK-T3-15;

• 46 (existing) corpus pins: SPK-T7-04.

Applied on an assumed answer, to revert if Thomas answers otherwise: #56 (attempt state aborted), #57 (pipeline workflows standalone until ci.yml calls them), #58 (the autopilot reads the nightly runs), #60 (slurm-versions planned, built by the first step that needs it), and #32 for the reuse of check results after a resume (SPK-T2-08).

Left as they are: the T3 measurements still marked [to be validated] in schedulers §3.1 (Snakemake head on failure scenarios, a cancelled head, long runs), and whether NXF_PLUGINS_DIR can point to a read-only copy (architecture §7.3).
