APPLY6 · Stages in 0.0.1, declared or detected

Done 2026-10-28 · branch autopilot/apply-stages · Thomas: 0.0.1 shows both the stages and the processes or rules list · stages detected from nf-core subworkflows and Snakemake rule files · shown on four example pipelines · naming assumed (inbox #68) · a bridge-loading problem raised, not changed (inbox #69) · doc review approve 11/14, changes applied · fact-check: 3 findings, applied

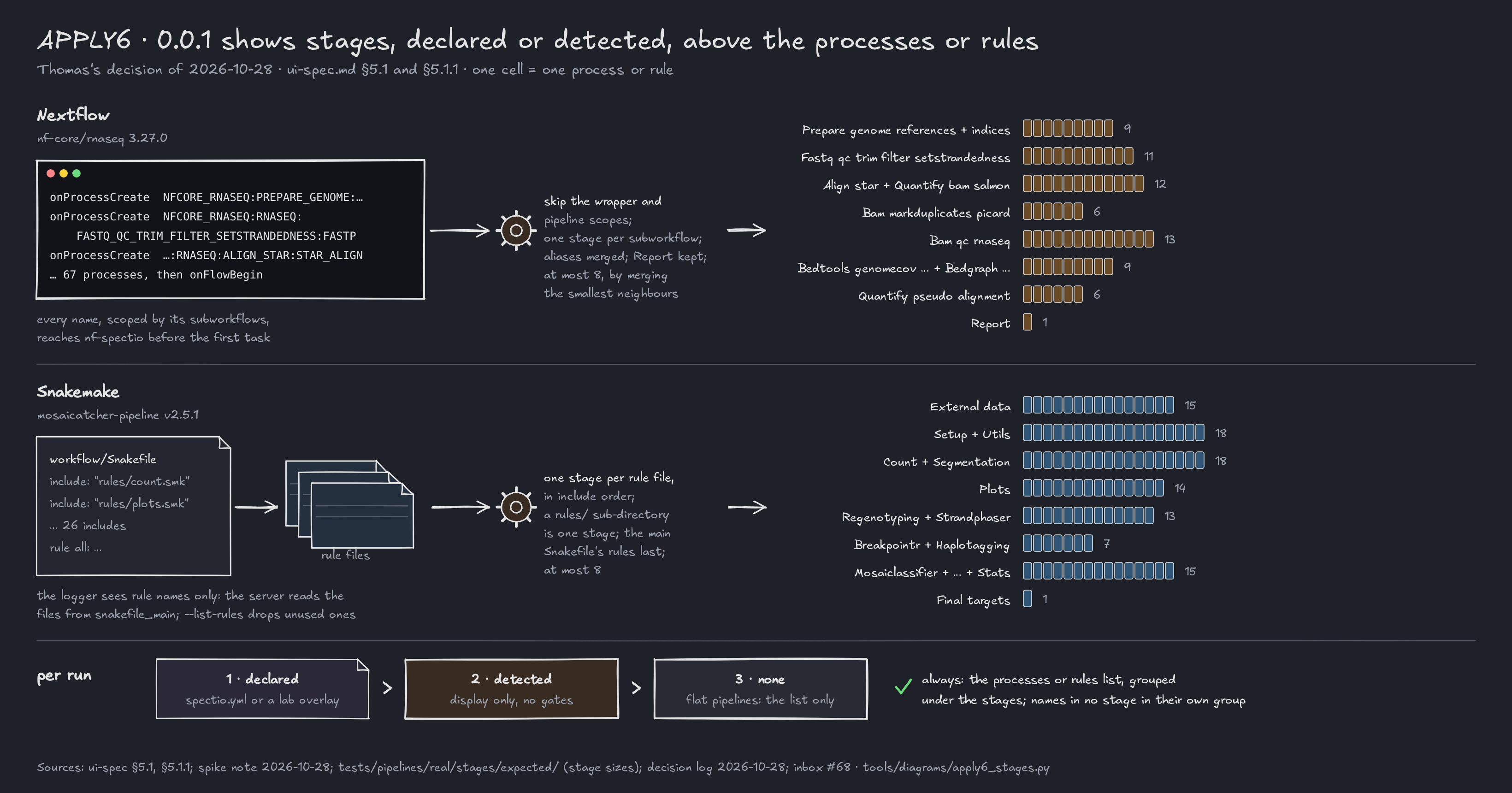

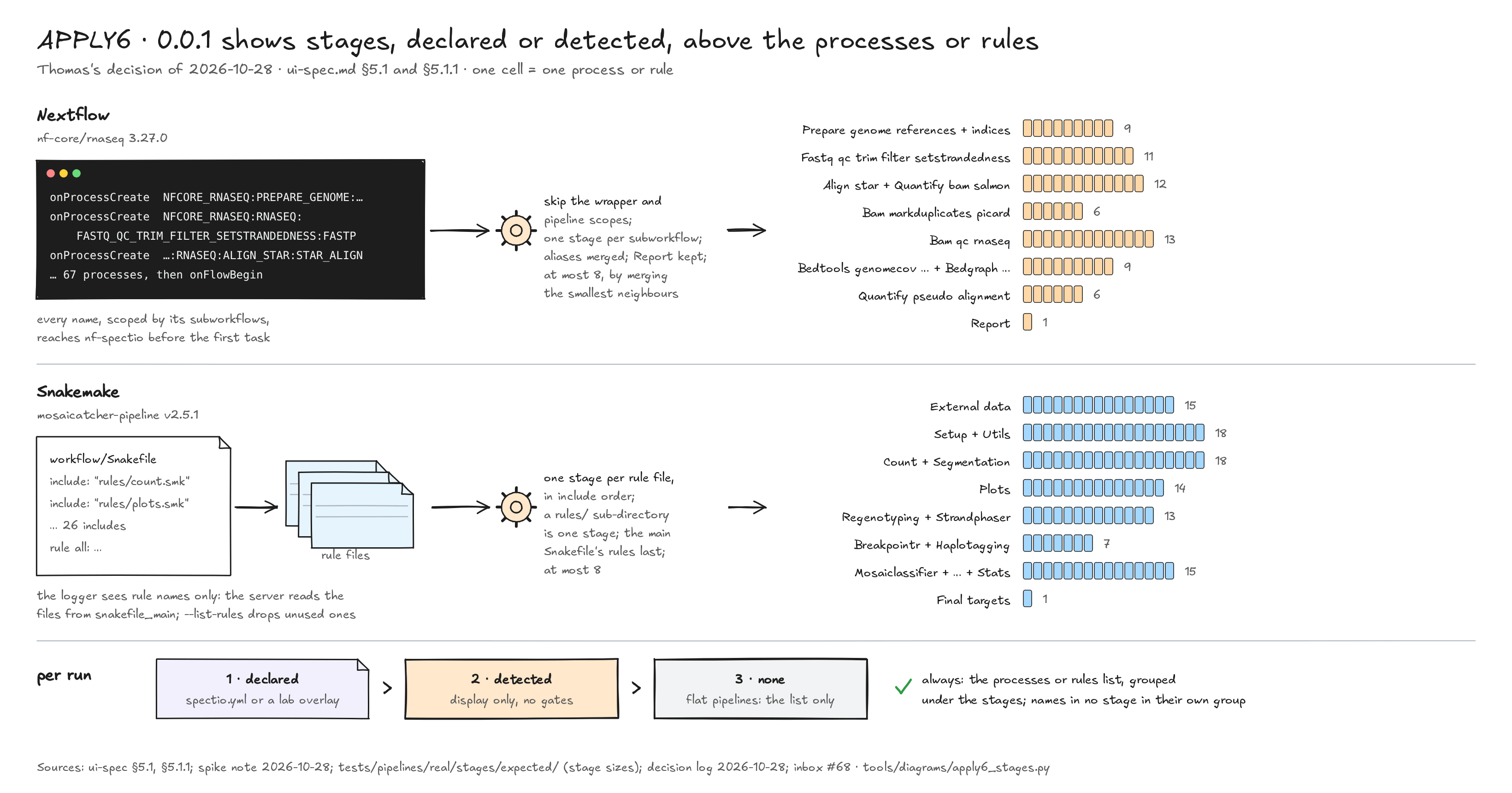

APPLY6 figure in three rows. Nextflow, nf-core/rnaseq 3.27.0: nf-spectio receives onProcessCreate with each fully qualified process name, such as NFCORE_RNASEQ:RNASEQ:ALIGN_STAR:STAR_ALIGN, 67 processes, all before onFlowBegin; a detector skips the wrapper and pipeline scopes, makes one stage per subworkflow, merges aliases, keeps the Report and caps at 8 by merging the smallest neighbours; the result is 8 stages drawn to scale, one cell per process: Prepare genome references and indices 9, Fastq qc trim filter setstrandedness 11, Align star and Quantify bam salmon 12, Bam markduplicates picard 6, Bam qc rnaseq 13, Bedtools genomecov and Bedgraph 9, Quantify pseudo alignment 6, Report 1. Snakemake, mosaicatcher-pipeline v2.5.1: the main Snakefile has 26 include lines; the logger sees rule names only, so the server reads the files from snakefile_main, and --list-rules drops the unused ones; one stage per rule file in include order, a rules sub-directory as one stage, the main Snakefile's rules last, at most 8: External data 15, Setup and Utils 18, Count and Segmentation 18, Plots 14, Regenotyping and Strandphaser 13, Breakpointr and Haplotagging 7, Mosaiclassifier to Stats 15, Final targets 1. Per run: 1 declared, from spectio.yml or a lab overlay, beats 2 detected, display only and no gates, which beats 3 none, for flat pipelines; the processes or rules list is always shown, grouped under the stages, with the names in no stage in their own group APPLY6 figure in three rows. Nextflow, nf-core/rnaseq 3.27.0: nf-spectio receives onProcessCreate with each fully qualified process name, such as NFCORE_RNASEQ:RNASEQ:ALIGN_STAR:STAR_ALIGN, 67 processes, all before onFlowBegin; a detector skips the wrapper and pipeline scopes, makes one stage per subworkflow, merges aliases, keeps the Report and caps at 8 by merging the smallest neighbours; the result is 8 stages drawn to scale, one cell per process: Prepare genome references and indices 9, Fastq qc trim filter setstrandedness 11, Align star and Quantify bam salmon 12, Bam markduplicates picard 6, Bam qc rnaseq 13, Bedtools genomecov and Bedgraph 9, Quantify pseudo alignment 6, Report 1. Snakemake, mosaicatcher-pipeline v2.5.1: the main Snakefile has 26 include lines; the logger sees rule names only, so the server reads the files from snakefile_main, and --list-rules drops the unused ones; one stage per rule file in include order, a rules sub-directory as one stage, the main Snakefile's rules last, at most 8: External data 15, Setup and Utils 18, Count and Segmentation 18, Plots 14, Regenotyping and Strandphaser 13, Breakpointr and Haplotagging 7, Mosaiclassifier to Stats 15, Final targets 1. Per run: 1 declared, from spectio.yml or a lab overlay, beats 2 detected, display only and no gates, which beats 3 none, for flat pipelines; the processes or rules list is always shown, grouped under the stages, with the names in no stage in their own group

Stage sizes are those of tests/pipelines/real/stages/expected/. Before: autopilot/integration at 1abd5dd, where 0.0.1 showed the processes or rules only and stage detection came later (P1 Assumption 6).

This step is outside pipeline.yaml. Thomas, 2026-10-28: "les 2 dans 0.0.1 ; certains pipelines exemples pour montrer comment ça fonctionne pour 2/3 nf core et https://github.com/friendsofstrandseq/mosaicatcher-pipeline ; travaille pour nf core sur un systeme automatisée qui détecte les différents grand stages ; il doit y avoir un moyen via subworkflows etc" (decision log). A spike came first; this step applies it.

What changed

Part 1, the spike (branch spike/stage-detection, files under spikes/stage-detection/). It ran nf-core/rnaseq, sarek and methylseq with -preview and the T2 bridge, and mosaicatcher-pipeline as a Snakemake dry run. It wrote two throwaway detectors and four example lab overlays. Note: Spike: stage detection.

Part 2, the specs (this branch).

  • ui-spec §5.1. Source (2), detected, now names the real rules: Nextflow subworkflows below the wrapper scopes, and Snakemake rule files, in place of "top-level subworkflows" and "module prefixes and checkpoints". A dated note says that the run detail shows both the stages and the processes or rules; names in no stage have tasks.stage_id null, and the presentation is owned by ui-spec §4.4.

  • ui-spec §5.1.1, new. It covers:

    • where detection runs: on the server, from what the bridges send, for launched and terminal runs alike;
    • the seven Nextflow rules and the four Snakemake rules;
    • order and state;
    • the four examples, with their fixtures.

    §3.2 says the gauge has one sector per declared or detected stage. - checking-scenarios §12.1. A match glob sees the fully qualified Nextflow name, and * crosses :. - api §7 run_stages. Detected stages freeze at the run's first onFlowBegin or workflow_started, before any task. - dev-env §15.1. A new Stages row: yes in 0.0.1, both, display only; the overlay editor, rerun from a stage and gates stay later. - mvp-0.0.1.md §2. A feature row. - P1. - Assumption 6 is reversed: stages and the list, both. - The Goal, Milestones (a new M7) and Done when are updated. - A new Task 27 covers the detectors as pure functions, the overlay assignment, run_stages, filling Task 18's /stages subset and summary.stage_mode, and the stages in the run detail per ui-spec §4.4, with golden tests on the fixtures. Snakemake's --list-rules runs in the head script, so the server never runs snakemake itself. - Task 18–20 lines are not edited. - Fixtures, tests/pipelines/real/stages/. They hold: - five process lists, the rnaseq events, and the mosaicatcher rule lists; - the four overlays; - the expected detector output; - a README with the pins. - Inbox. #68 and #69. - Decision log. A new entry.

Part 3, the reviews of 2a245bf.

  • Doc review, approve 11/14. Required changes, all applied:
    1. The gauge is ui-spec §3.2, not §2: fixed in §5.1.1 rule 5, the log, this page and the note.
    2. The head script and its -plugins test are P1 Task 9, not Task 10: fixed in inbox #69, this page and the note.
    3. Inbox #69 is linked, with a dated "open; mechanism unchanged" line, wherever loading nf-spectio is described: architecture §13 and §13.8, dev-env §15.1 and §15.3, mvp-0.0.1.md §2, P1 Task 9 and the Task 25 guide, and ui-spec §6.
    4. Presentation belongs to ui-spec §4.4 (branch autopilot/ui-lite-review): the ui-spec §5.1 note states the mechanism only (tasks.stage_id null for names in no stage); P1 Assumption 6 and Task 27 point to §4.4.
    5. Task 27 adds no route: it fills Task 18's /stages subset from run_stages, and test_stages_route asserts that shape.
    6. Where overlay files live and how one matches a run now have an owner: a dated 0.0.1 note in checking-scenarios §12.7 (~/.spectio/overlays/, matched on engine, workflow.name and the version range), assumed, inbox #68; Task 27 links it and tests it.
  • Optional changes, all applied: §5.1.1 rule 6 names groups of direct calls (joined with ", "); the rnaseq events capture is in tests/pipelines/real/stages/events/; assign returns the one matching stage, since §12.3 refuses overlaps.
  • Fact-check of the spike: the core claims hold, and onProcessCreate comes before onFlowBegin on 25.10.9 too. Three findings, recorded in the note's Fact-check section and applied:
    • FC-311: the -plugins failure depends on the version (it fails on 26.10.4, and the pin drifts silently on 25.10.9); inbox #69 reworded;
    • FC-312: the list form of NXF_PLUGINS_DEFAULT is undocumented and skips plugin inference; inbox #69 option (a) is [to be validated] and appends the plugins the executor or work directory needs;
    • FC-313: 26 include: lines and 21 rule files in mosaicatcher, not 20; --list-rules prints docstrings, which Task 27 strips, with a test.

Why

nf-core pipelines declare no stages, so without detection 0.0.1 would show a flat list of 50 to 70 processes. The spike shows that the subworkflow scopes are already in every process name, and that the names reach the bridge before any task, so detection costs nothing at run time. The detected names are technical, so lab overlays stay the way to good names. Detection runs on the server so that runs started from a terminal get the same stages.

Evidence

  • Detector output, from the spike (out/detector_nf.txt, out/detector_smk.txt):

    rnaseq 3.27.0 STAR+Salmon  67 processes -> 8 stages
rnaseq 3.27.0 HISAT2       62 processes -> 8 stages
sarek 3.11.0               48 processes -> 8 stages
methylseq 4.2.0 Bismark    13 processes -> 4 stages
methylseq 4.2.0 bwa-meth   15 processes -> 5 stages
mosaicatcher v2.5.1        101 rules (--list-rules) -> 8 stages; source only: 204 rules -> 8
synthetic T2 (flat)        no detected stages

  • Overlays: each of the four matches every name of its fixture, with no overlap (out/overlays_vs_detected.txt).

  • Docs gate, python3 tools/docs/check.py on this branch:

    mermaid: 5 blocks checked
diagrams: 28 scripts re-run, 56 SVGs compared
media: 138 outputs in the manifest
progress: 41 pages checked
docs gate: 0 failure(s)

  • Mermaid: no diagram added or changed in this step.

  • Strict build: uvx --with mkdocs-material mkdocs build --strict exits 0. The new anchors exist in the built pages: 511-detected-stages, 2026-10-28-001-shows-stages-declared-or-detected-and-the-processes-or-rules-list and 69-nf-spectio-is-enabled-in-a-way-that-breaks-nf-core-runs-or-drops-the-bridge.
  • Before: git show 1abd5dd:docs/plans/P1-walking-skeleton.md (Assumption 6: "Structural stage detection … and run_stages come later"). After: git diff 1abd5dd -- docs/specs docs/plans docs/decisions docs/reviews/inbox.md.

Figures and media

  • apply6_stages (above), new: tools/diagrams/apply6_stages.py, entry apply6-stages in docs/assets/media.yaml. Rendered light and dark; both PNGs were opened and checked for overlaps.
  • The P1 figure p1_skeleton is not redrawn; its dated note now also names Task 27.
  • No screenshot or cast: nothing in this step runs a UI.

Findings and open questions

  • Inbox #68 (assumed (a)): the four example pipelines; detected stages keep technical names; readable names come from overlay files.
  • Inbox #69 (not assumed): -plugins nf-spectio@<ver> replaces an nf-core pipeline's pinned plugins (the run fails on Nextflow 26.10.4 and drifts silently from the pin on 25.10.9), and a plugins block in ~/.nextflow/config silently drops the bridge; NXF_PLUGINS_DEFAULT works, through an undocumented list form. It blocks P1 Task 9 (the head script) for real nf-core pipelines.
  • [to be validated], from the note:
    • the same names on a real run with tasks, on SLURM;
    • onProcessTerminate for a process whose input never closes;
    • --list-rules needing input data on other pipelines;
    • the order of rules first seen after a checkpoint;
    • older nf-core templates;
    • NXF_PLUGINS_DEFAULT on the EMBL cluster, and its undocumented list form (FC-312);
    • whether nf-spectio can read manifest.name and manifest.version to match an overlay (checking-scenarios §12.7 note).
  • Merge note: the UI-lite review (branch autopilot/ui-lite-review) owns the lite boards and the P1 Task 18–20 lines; both steps add inbox items, so check the numbers at merge.
